BRIDGE UNIT (B482) 26 July 2002
1-38
1.11 BRIDGE UNIT (B482)

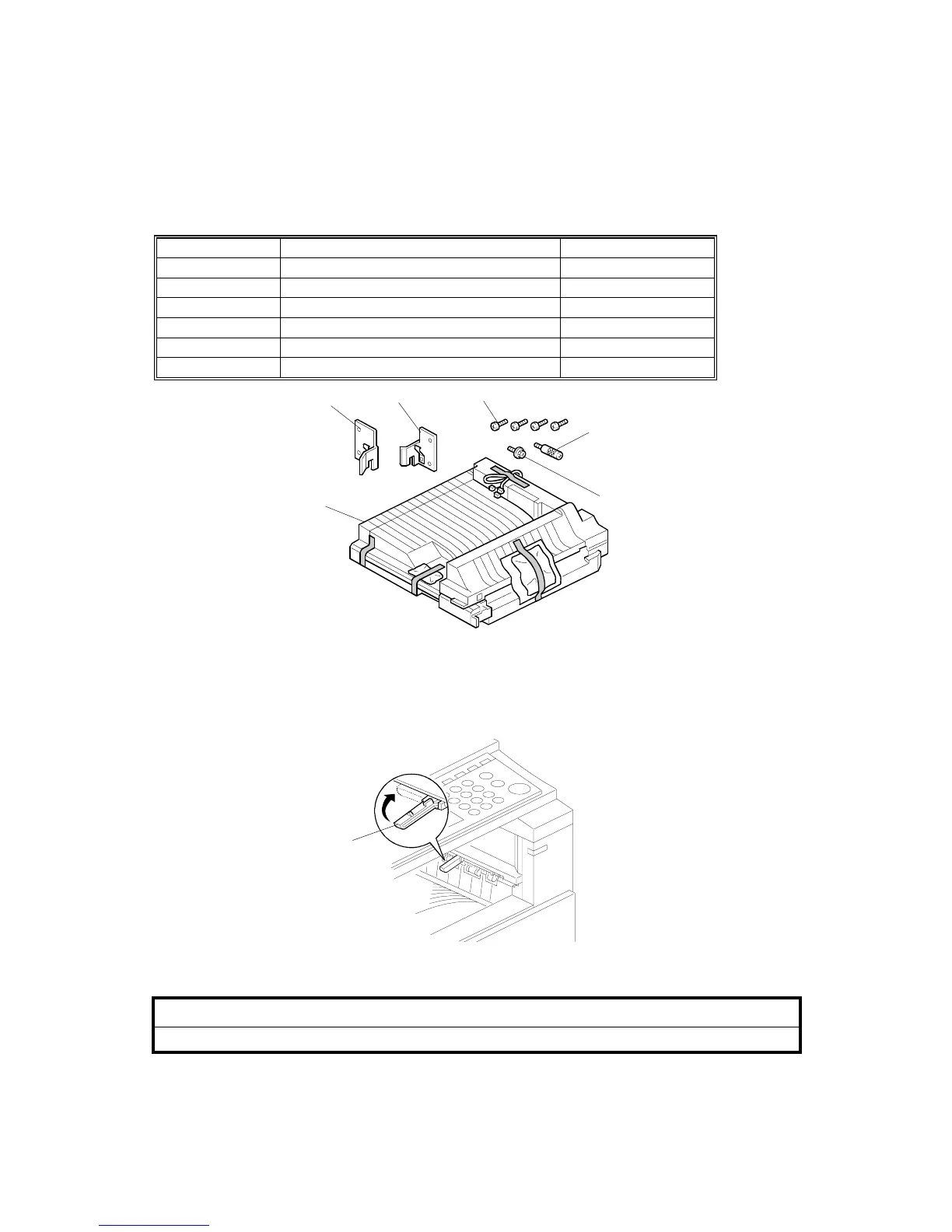

1.11.1 ACCESSORY CHECK
Check the quantity and condition of the accessories against the following list.
No. Description Q’ty
1 Bridge Unit 1
2 Rear Joint Bracket 1
3 Front Joint Bracket 1
4 Knob Screw 1
5 Screw - M3x6 1
6 Screw - M4x14 4
1.11.2 INSTALLATION PROCEDURE
!CAUTION
Unplug the copier power cord before starting the following procedure.
1. Remove all tapes.
2. If the sensor feeler [A] is out, fold it away into the machine.
B482I101.WMF
B482I500.WMF
1
2
3
4
5
6
[A]
