PAPER FEED 26 July 2002
6-54
6.10 PAPER FEED

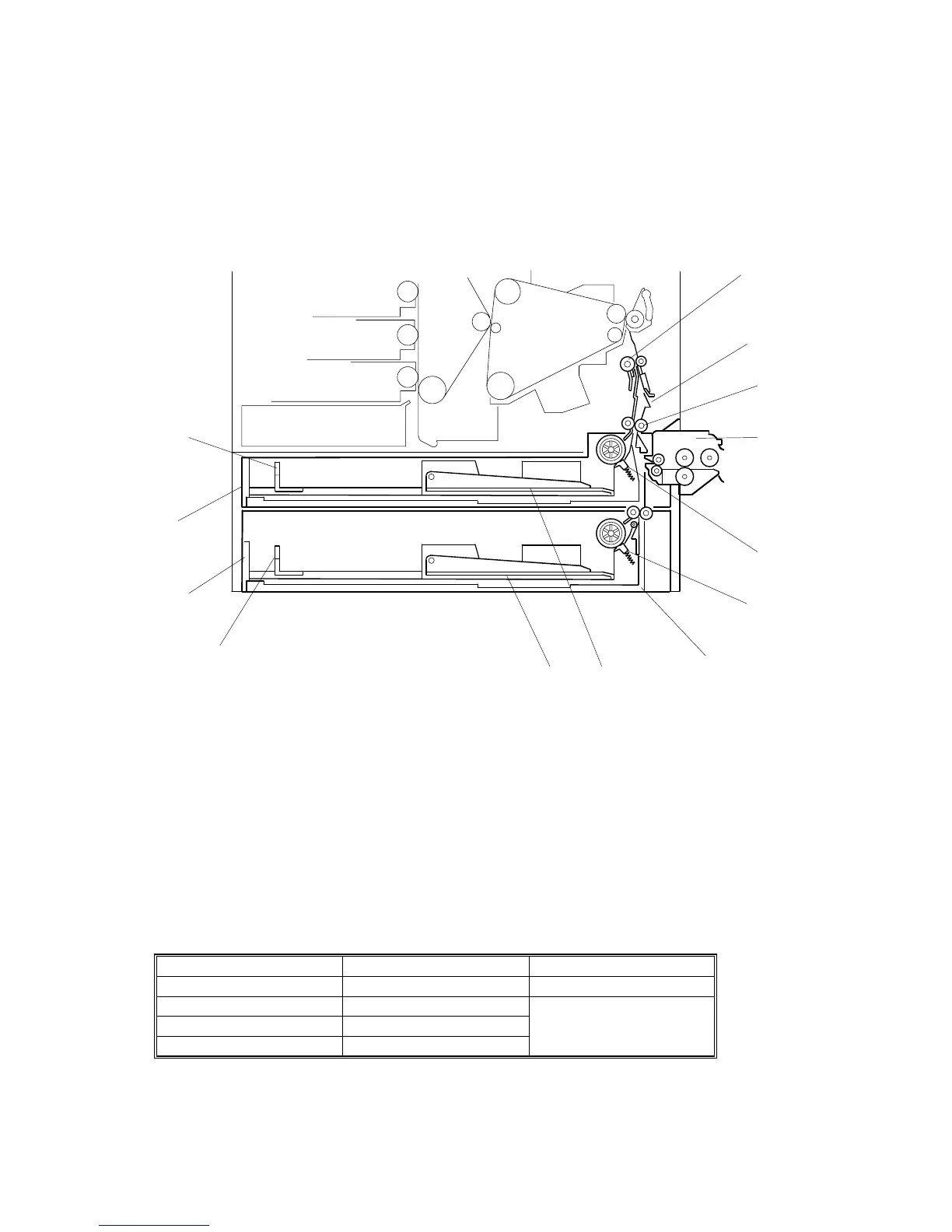

6.10.1 OVERVIEW
1. Registration roller
2. Path from duplex unit
3. Vertical transport roller
4. By-pass tray
5. Friction pad with spring (Tray 1)
6. Friction pad with spring (Tray 2)
7. Path from optional paper tray
8. Base plate (Tray 1)
9. Base plate (Tray 2)
10. Paper end fence (Tray 2)
11. Tray 2
12. Tray 1
13. Paper end fence (Tray 1)
The table lists the main and optional paper stations.
Tray Number Main/Optional
Standard tray 2 Main unit
By-pass tray 1
Paper tray unit 2
LCT 1
Optional unit
B051D605.WMF
10
11
12
13
1
2
3
4
5
7
8 9
