26 July 2002 PAPER TRAY UNIT (B456)
1-13
Installation
1.3 PAPER TRAY UNIT (B456)
1.3.1 ACCESSORY CHECK
Check the quantity and condition of the accessories against the following list.
No. Description Q’ty
1 Right Stand Bracket 1
2 Left Stand Bracket 1
3 Securing Bracket 2
4 Front Stand 1
5 Rear Stand 1
6 Screw - M4x10 4
7 Knob Screw 2
8 Stepped Screw 2
1.3.2 INSTALLATION PROCEDURE
!CAUTION
Unplug the machine power cord before starting the following procedure.
1. Remove the strips of tape.

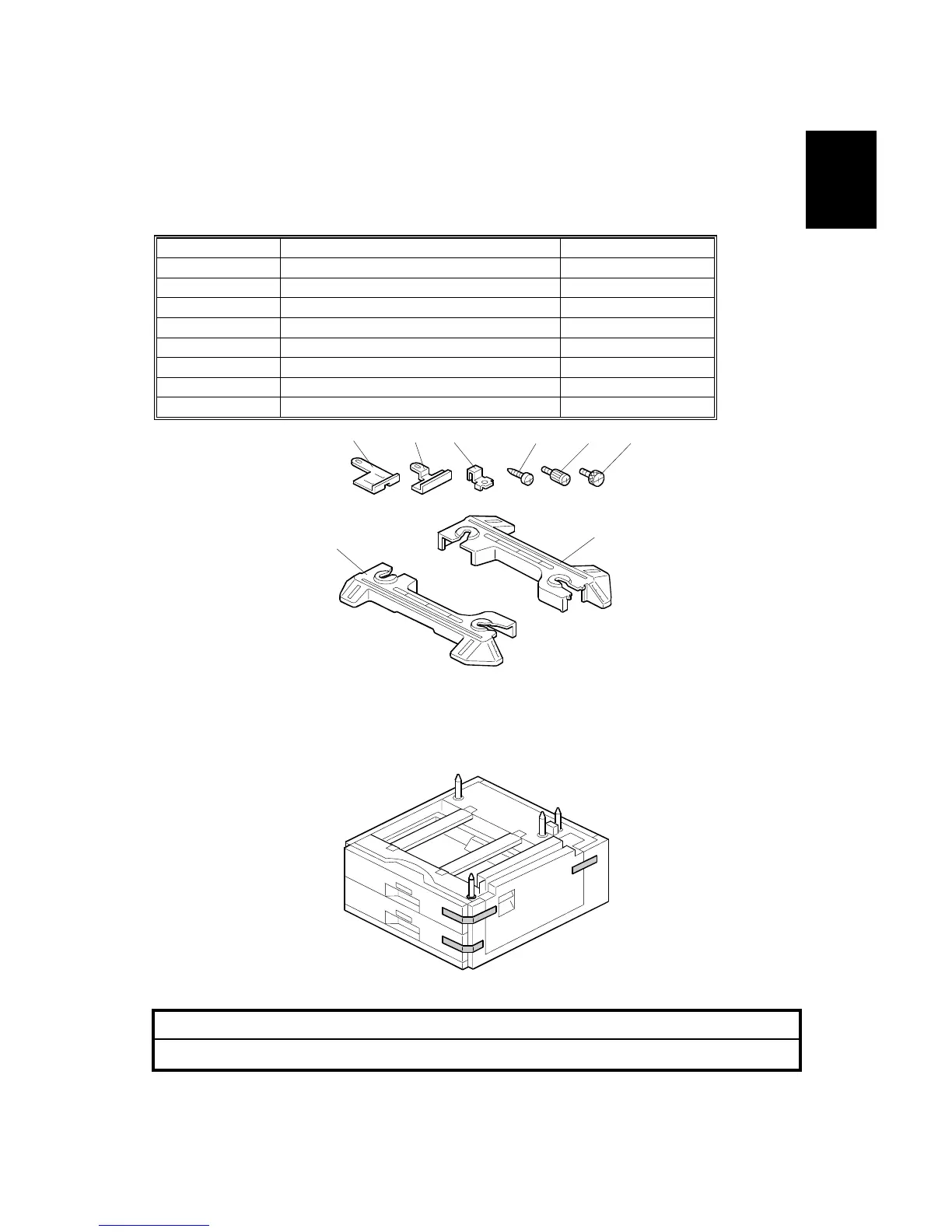

B456I001.WMF
B456I002.WMF
1
2
3
4
5
6 7 8
