Ricoh U-C1 B051 - Boards

26 July 2002 OVERVIEW
6-9
Detailed
Descriptions
Boards
1. Scanner I/O board
2. I/O board
3. Development fan
4. EX I/O board
5. BICU board
6. Controller fan
7. Power supply unit
8. Ozone fan
9. PSU fan
10. Temperature/humidity sensor
11. Controller board
12. High voltage supply board
13. Oil pump
14. Fusing unit fan
15. Paper exit fan

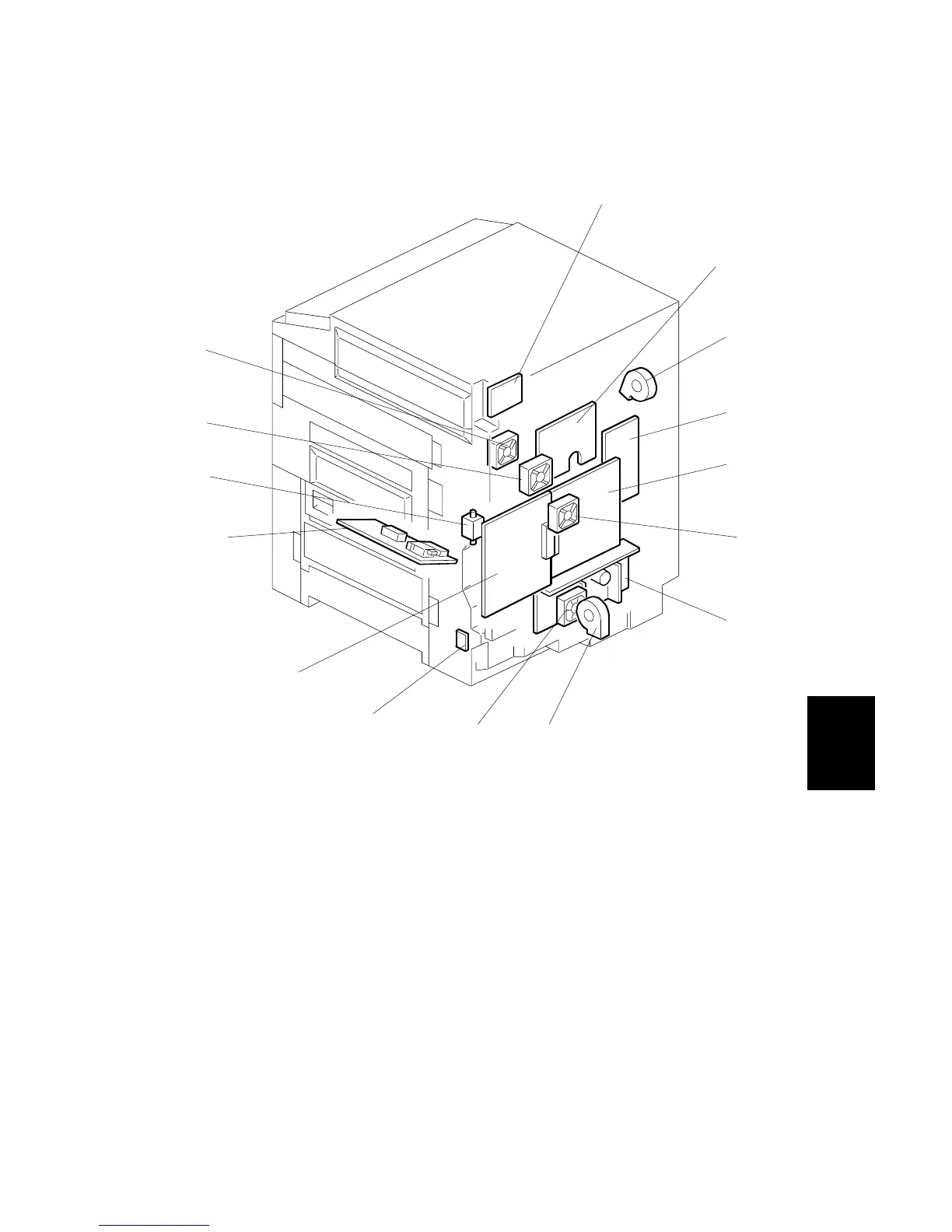

B051D110.WMF
1
2
4
5
6
7
9
11
12
14
15
3
8
10
13
