26 July 2002 FUSING/PAPER EXIT
3-33
Replacement
Adjustment

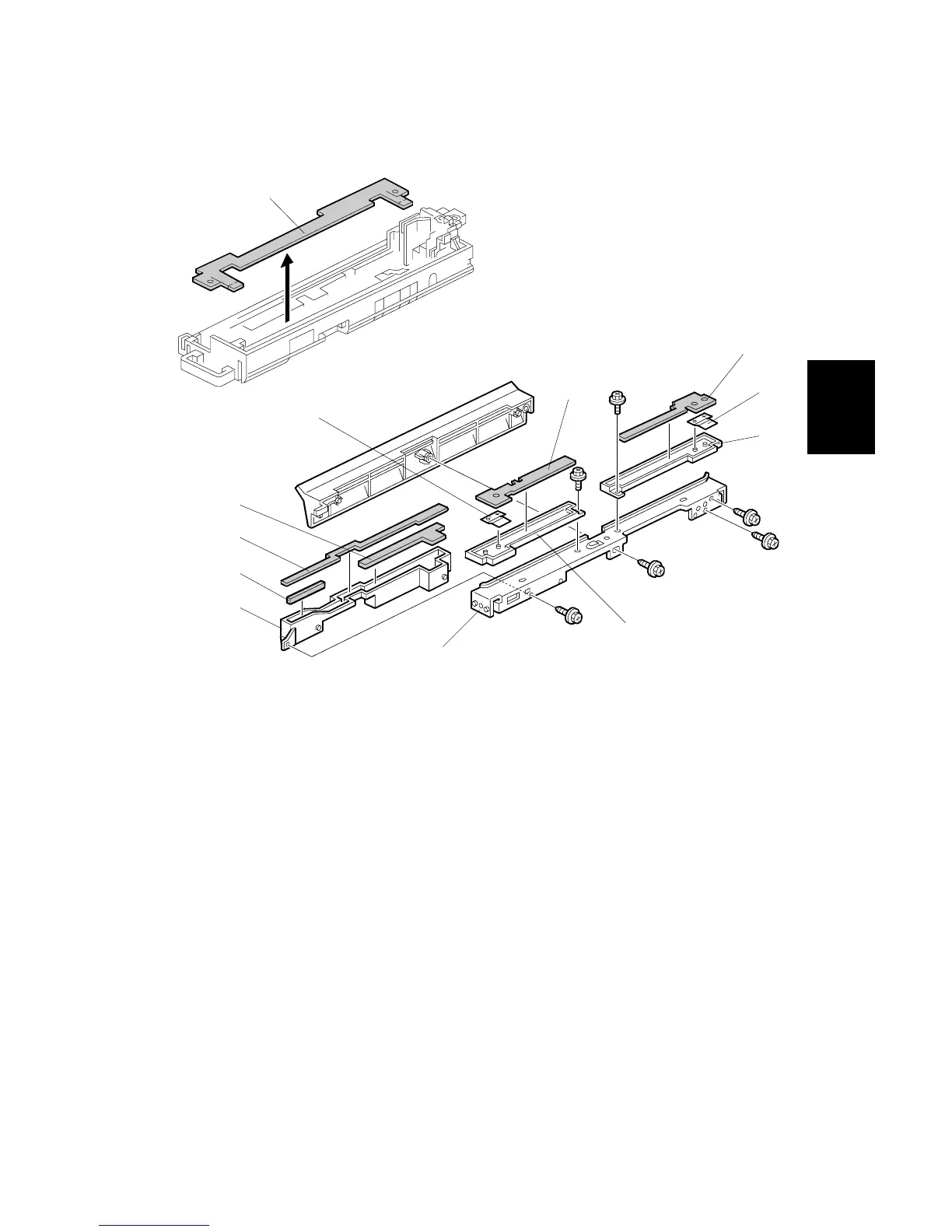

3.8.13 OIL ABSORBERS
1. Fusing inner unit (☛ 3.8.7)
2. Absorber 1 [A]
3. Pressure roller unit (☛ 3.8.10)
4. Absorber holder [B] (! x 1)
5. Absorber 2 [C]
6. Spring [D]
7. Absorber holder [E] (! x 1)
8. Absorber 3 [F]
9. Spring [G]
10. Base bracket [H] (! x 2)
11. Absorber holder [I] (! x 1)
12. Absorber 4 [J]
13. Absorber 5 [K]
14. Absorber 6 [L]
B051R516.WMF
B051R825.WMF
[A]
[D]
[E]
[F]
[G]
[H]
[L]
[C]
[B]
[K]
[J]
[I]
