Ricoh U-C1 B051 - Paper Feed Sensor 2

26 July 2002 PAPER FEED AND TRANSPORT
3-41
Replacement
Adjustment
3.9.5 PAPER FEED SENSOR 2
1. Controller box (☛ 3.9.2).
2. Paper trays (☛ 3.9.1)
3. Connector bracket [A] (! x 2)
4. Vertical transport clutch [B] (" x 1)
5. Bushing [C] (# x 1)
6. Roller unit [D] (" x 1, ! x 2)
7. Roller bracket [E] (# x 1, Bushing x
1)
8. Paper feed sensor 2 [F]

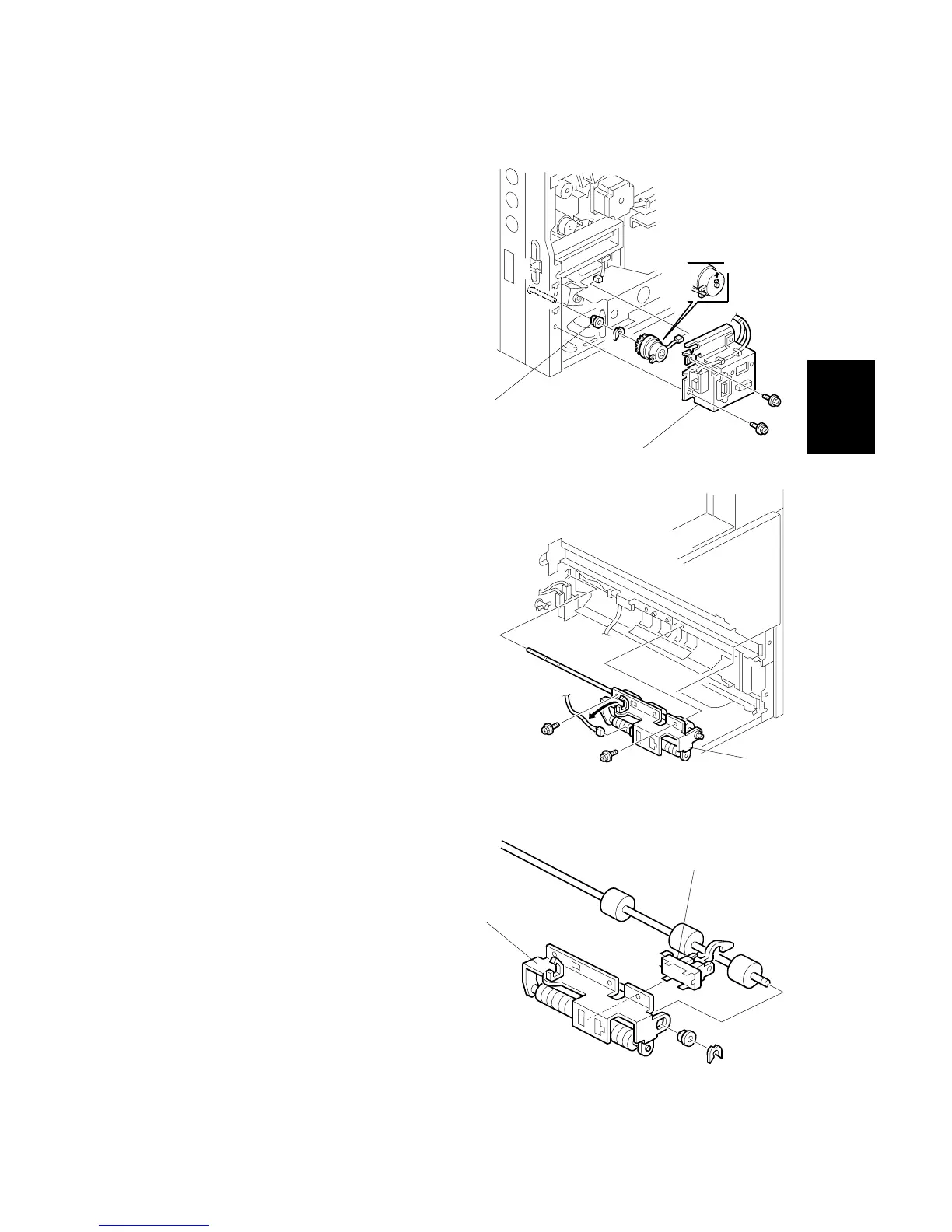

B051R612.WMF
B051R613.WMF
B051R614.WMF
[A]
[B]
[D]
[C]
[F]
[E]
