26 July 2002 SHIFT TRAY
1-31
Installation

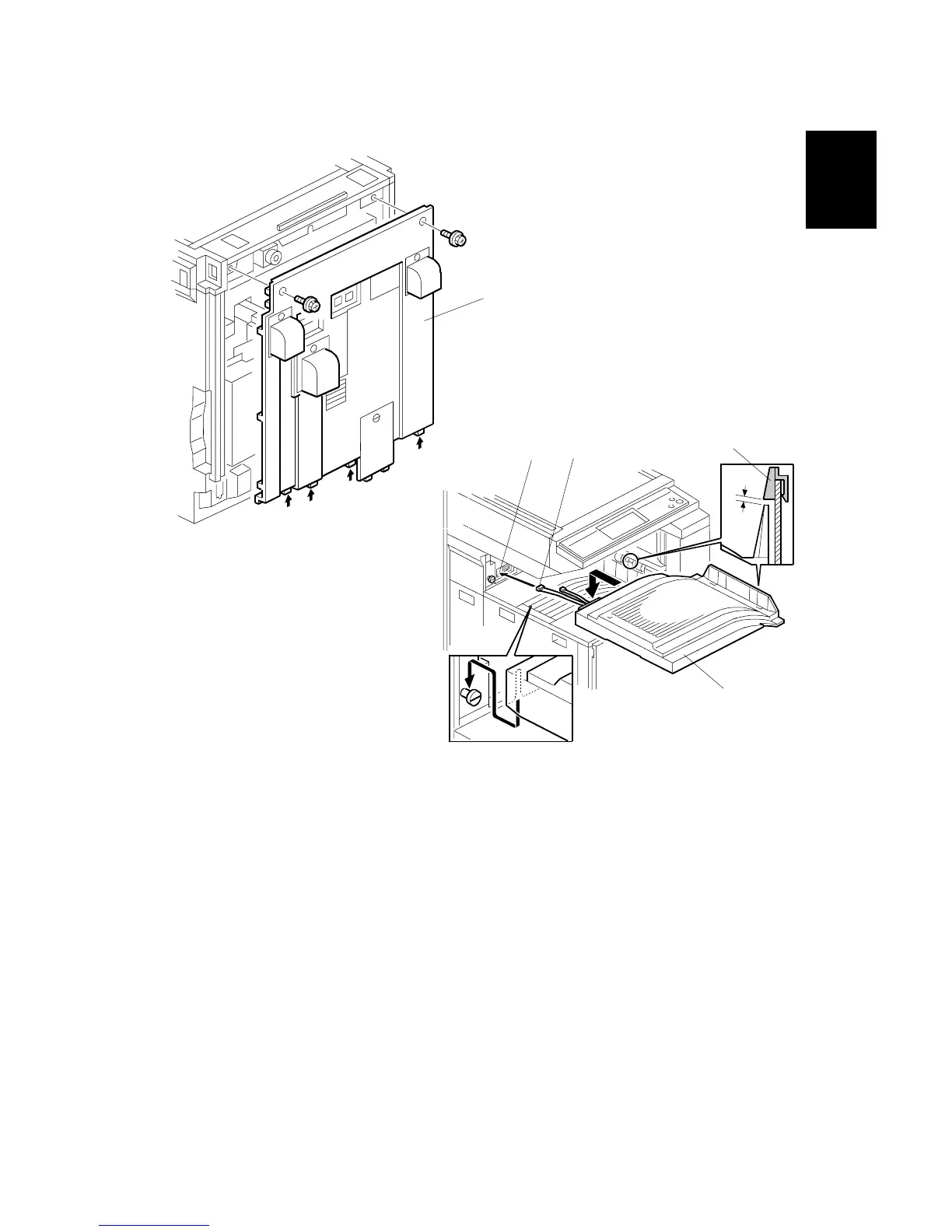

5. Remove the rear cover [A] (! x 2).
6. Pass the harnesses [B] through the opening [C], and install the shift tray unit
[D], as shown.
NOTE: 1) Set the shift tray on the stepped screw.
2) The shift tray must be installed under the paper guides [E] installed
in step 4.
B510I103.WMF
B510I110.WMF
[C]
[B]
[A]
[D]
[E]
