SCANNER UNIT 26 July 2002
3-10

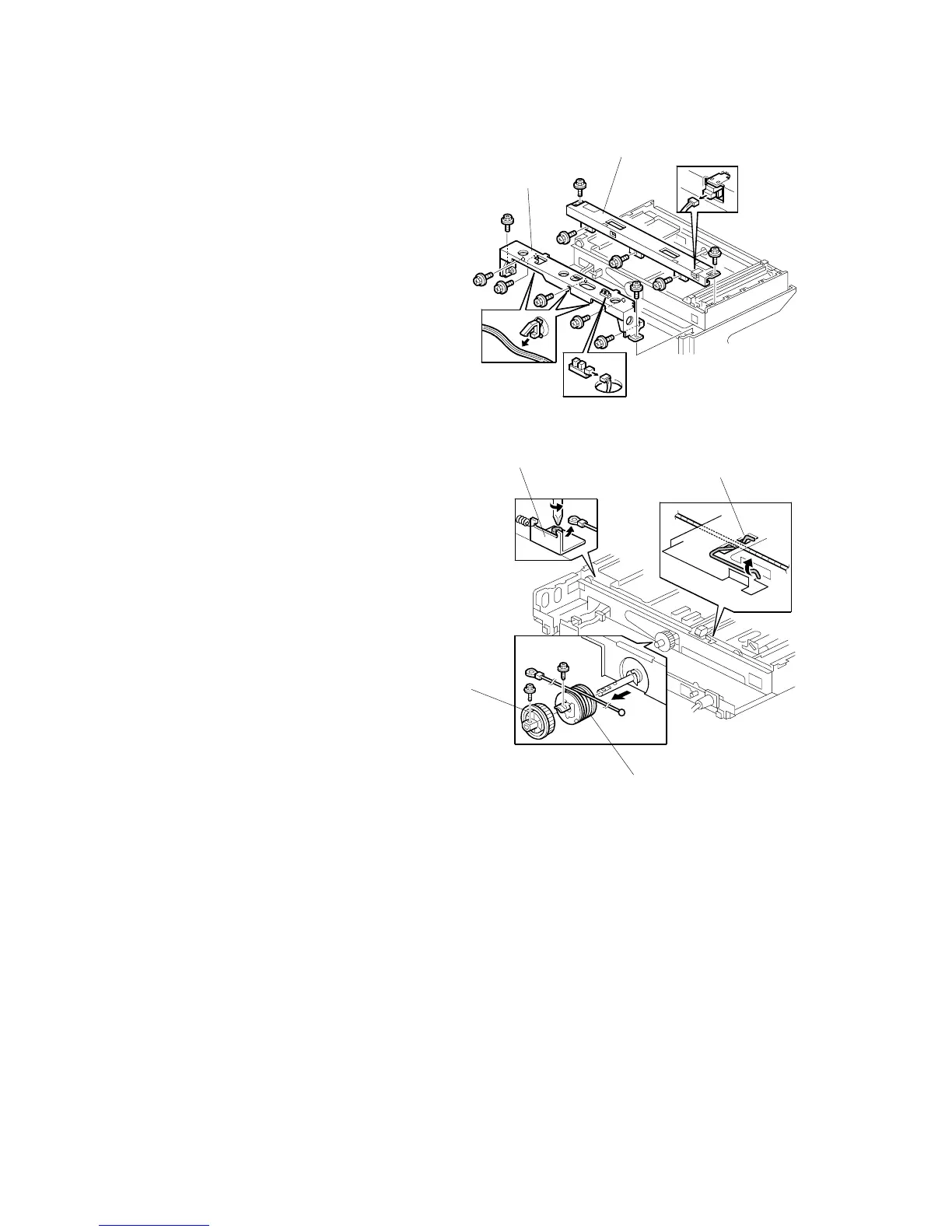

3.3.9 REAR SCANNER WIRE
1. Exposure glass ( 3.3.1)
2. Scanner motor ( 3.3.7)
3. Left frame ( 3.3.5)
4. Rear frame [A] (! x 7, " x 1)
5. Rear rail frame [B] (! x 5, " x 1)
6. To make reassembly easy, slide
to the right ( Reassembling the
Rear Scanner Wire).
7. Rear scanner wire clamp [C]
8. Rear scanner wire bracket [D] (! x 1)
9. Scanner motor gear [E] (! x 1)
10. Rear scanner wire and scanner drive
pulley [F] (! x 1)
B051R010.WMF
B051R949.WMF
[A]
[C]
[D]
[E]
[F]
[B]
