26 July 2002 SCANNER UNIT
3-11
Replacement
Adjustment

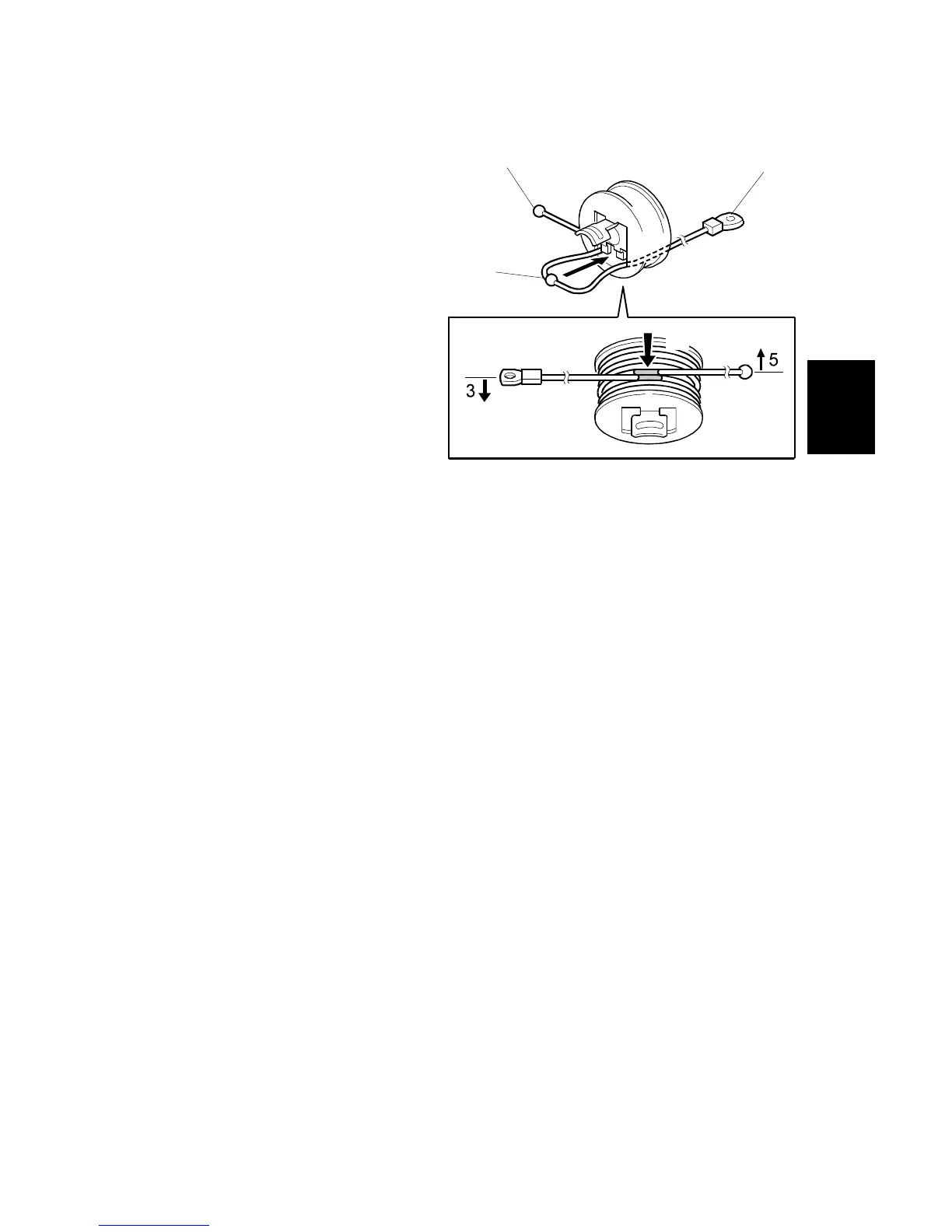

Reassembling the Rear Scanner Wire
1. Pass the end with the ball [A]
through the right square hole
from the front.
2. Position the center ball [B] in
the middle of the notch, as
shown by the arrow.
3. Pass the ball end [A] through
the drive pulley notch.
4. Wind the end with the ring [C]
counterclockwise five times;
wind the ball end clockwise
three times.
NOTE: The two red marks [D]
should meet when you
have done this.
5. Stick the wire to the pulley with tape, so you can easily handle the pulley and
wire during installation.
6. Install the drive pulley on the shaft.
NOTE: Do not screw the pulley onto the shaft yet.
7. Install the wire.
NOTE: The winding pattern is a mirror image of that of the front scanner wire.
8. Perform steps 10 through 15 in “Reassembling the Front Scanner Wire”.
