26 July 2002 PAPER FEED AND TRANSPORT
3-39
Replacement
Adjustment

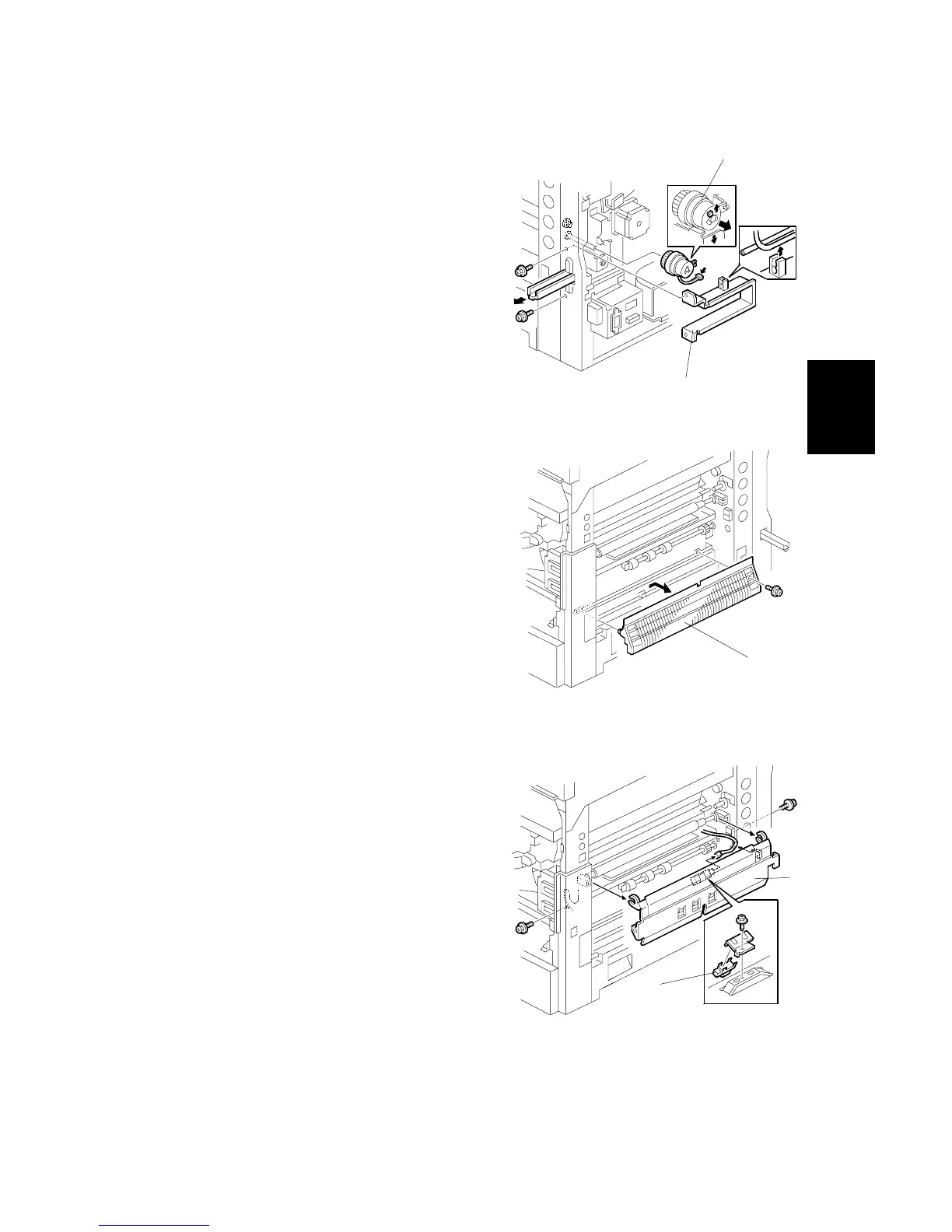

14. Handle guard [A] (! x 2)
15. Pull out the handle [B].
16. Loosen the two screws on the paper
feed clutch bracket ( 3.11.6).
17. Vertical transport clutch [C] (" x 1)
18. Transport guide [D] (! x 1)
19. While releasing the wire, remove the
transport stay [E] (! x 2).
NOTE: You can see the wire clip from
the rear of the machine.
20. Registration sensor [F] (" x 1, ! x 1)
B051R606.WMF
B051R607.WMF
B051R608.WMF
[A]
[B]
[D]
[E]
[F]
[C]
