TRAY HEATER 26 July 2002
1-54
1.18 TRAY HEATER
!CAUTION
Unplug the main machine power cord before starting the following
procedure.

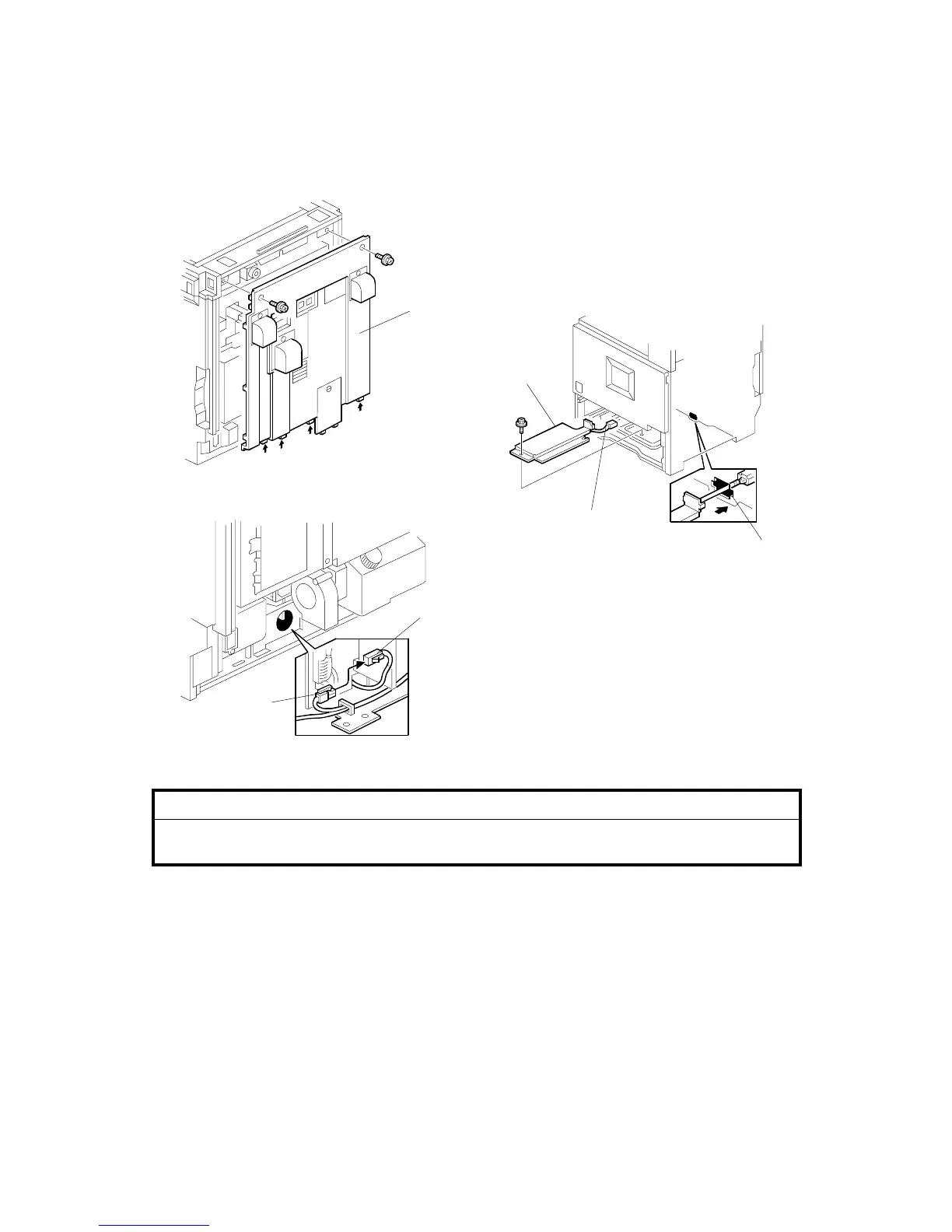

1. Remove the rear cover [A] (! x 2).
2. Slide out the 1st and 2nd paper trays.
3. Pass the connector [B] through the opening [C].
4. Install the tray heater assembly [D] (! x 1).
5. Connect the heater cable to the ac cable [E].
6. Reassemble the machine.
B051I554.WMF
B051I140.WMF
B051I141.WMF
[A]
[B]
[C]
[D]
[B]
[E]
