26 July 2002 MEMORY
1-49
Installation
1.15 MEMORY
!CAUTION
Unplug the main machine power cord before starting the following
procedure.

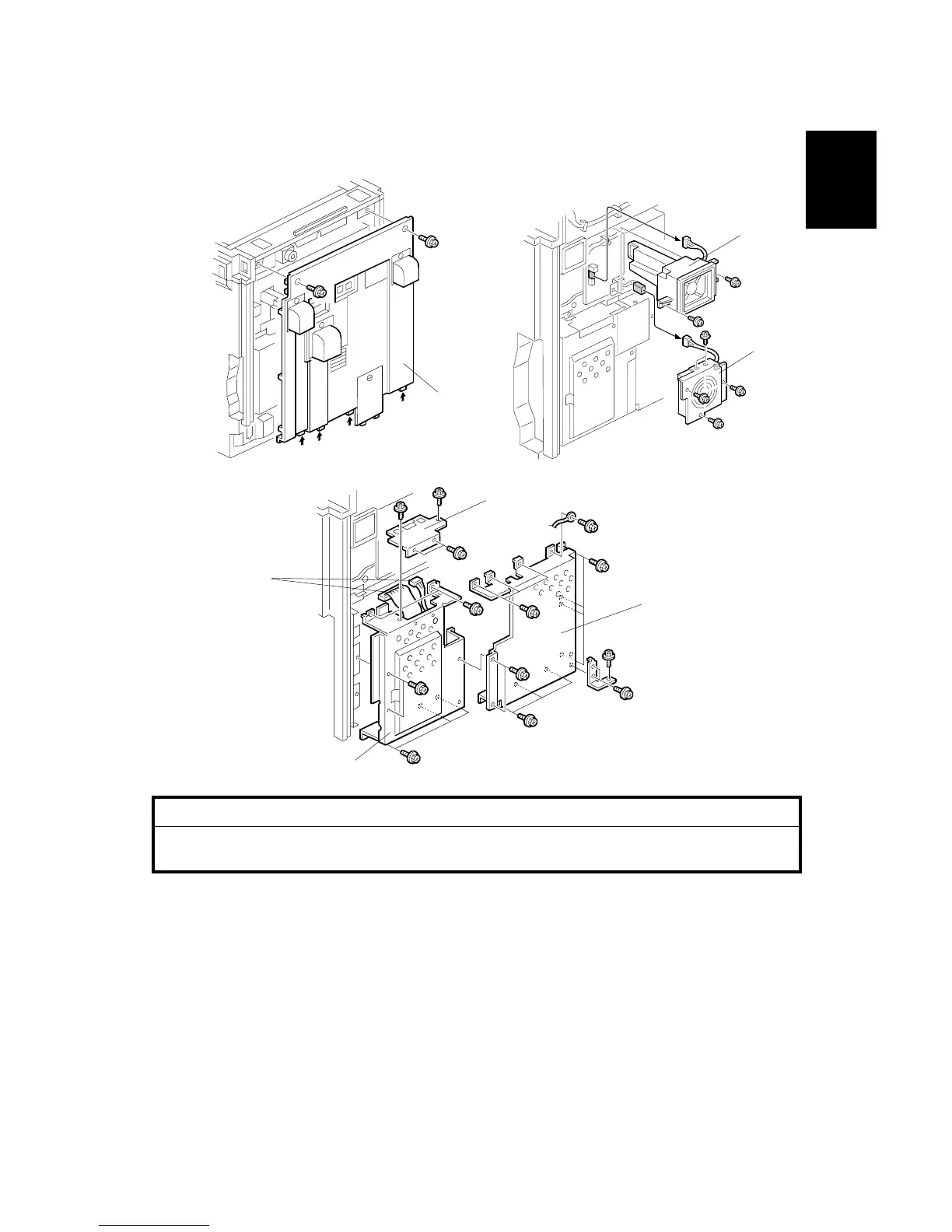

1. Remove the rear cover [A] (! x 2).
2. Remove the cooling fan [B] (! x 2).
3. Remove the PCB fan [C] (! x3, " x 1).
4. Remove the BICU cover [D] (! x 16).
5. Remove the HDD connector cover [E] (! x 4).
6. Disconnect two HDD harnesses [F].
7. Remove the controller board cover [G] (! x 7).
B051I554.WMF
B051I504.WMF
B051I505.WMF
[D]
[E]
[F]
[G]
[A]
[B]
[C]
To Next Page
