Ricoh U-C1 B051 - Development Motor; Main Motor

DRIVE UNITS 26 July 2002
3-48

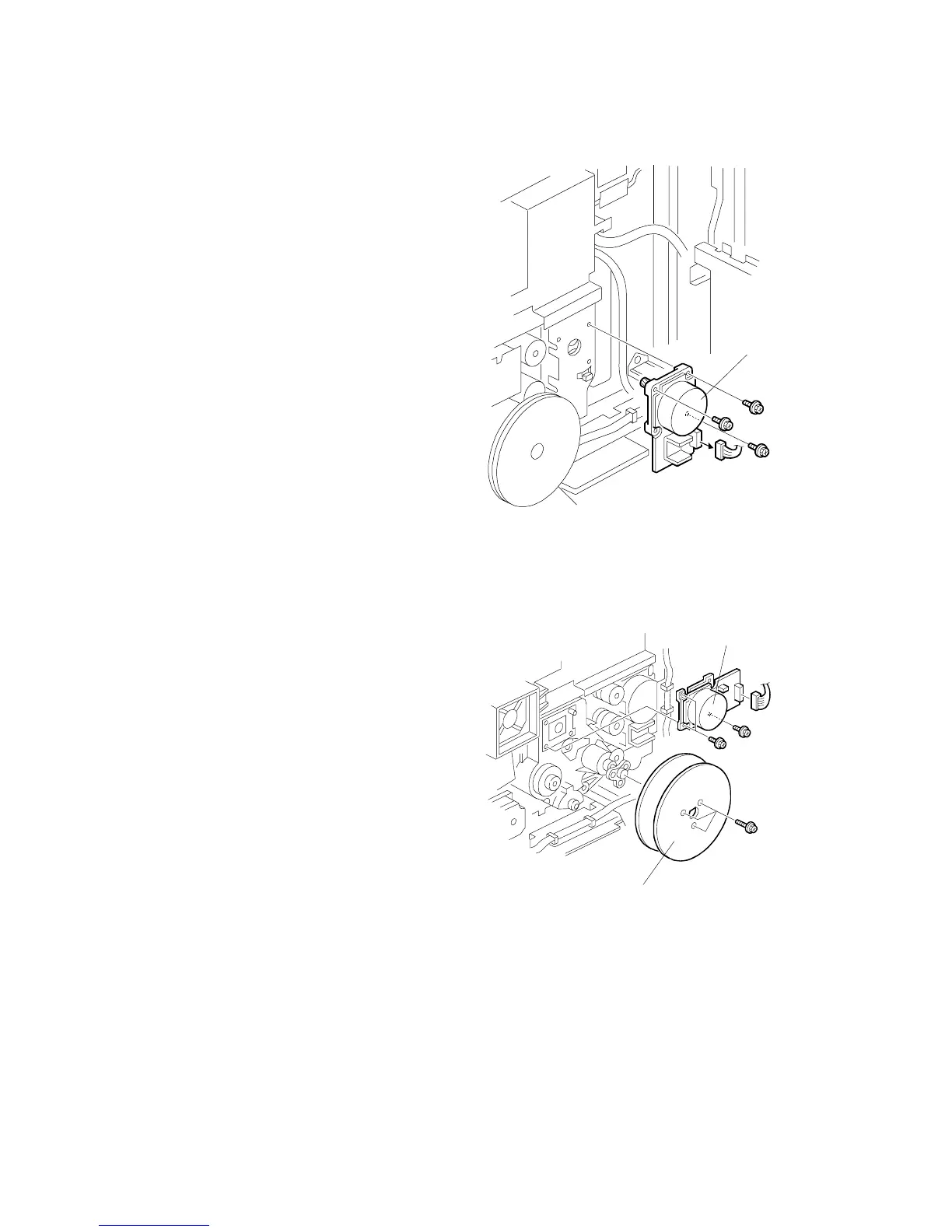

3.11.2 DEVELOPMENT MOTOR
1. Open the controller box (☛ 3.9.2).
2. Remove the screws from the EX I/O
board (☛ 3.10.2).
NOTE: You need not remove the
connectors.
3. Development motor [A]
(" x 1, ! x 3)
3.11.3 MAIN MOTOR
1. Open the controller box (☛ 3.9.2).
2. Flywheel [A] (! x 3)
3. Main motor [B] (" x 1, ! x 3)
B051R805.WMF
B051R806.WMF
[A]
[A]
[B]
