26 July 2002 PHOTOCONDUCTOR UNIT (PCU)
6-33
Detailed
Descriptions

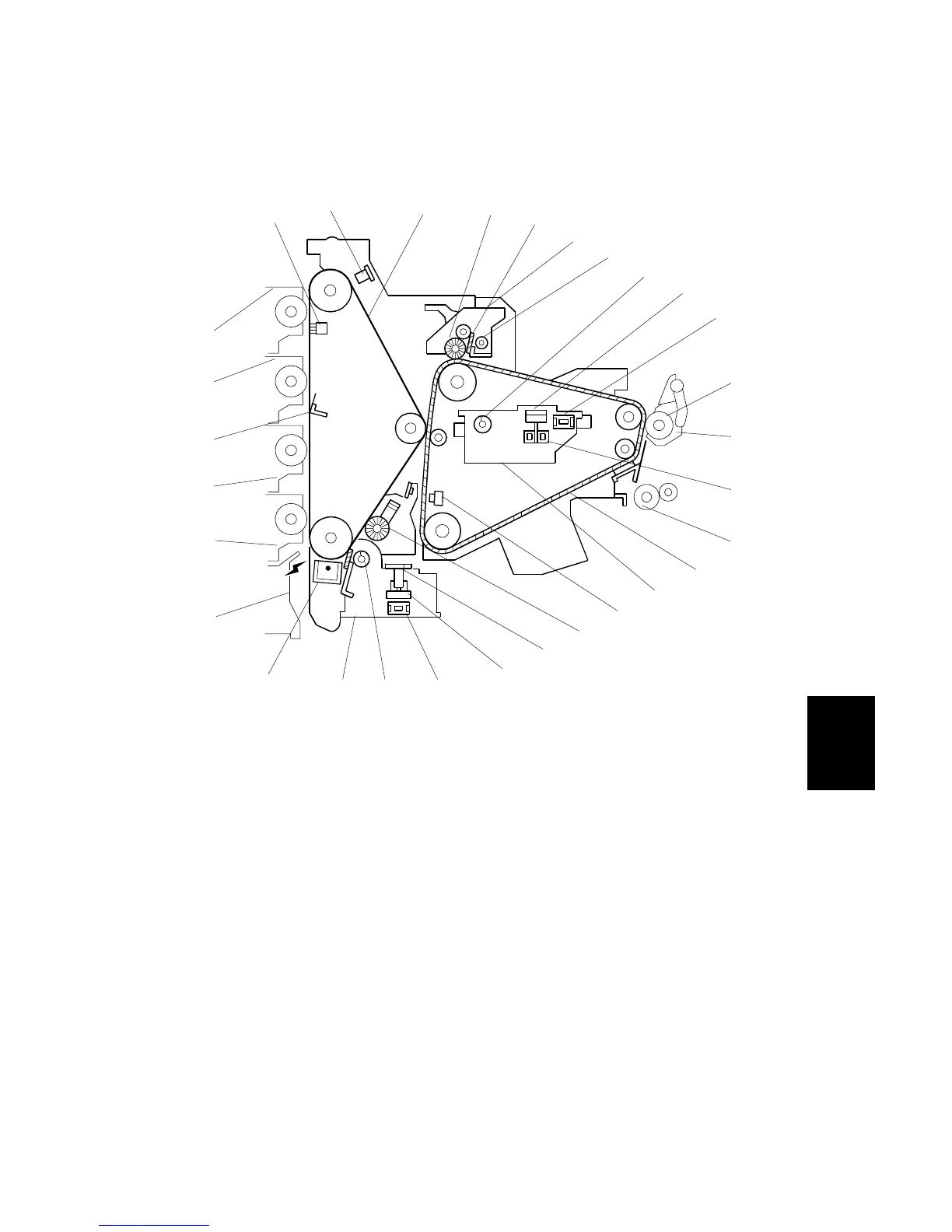

6.7 PHOTOCONDUCTOR UNIT (PCU)
6.7.1 OVERVIEW
1. Ground brush
2. ID sensor
3. OPC belt
4. Bias brush
5. Image transfer belt cleaning blade
6. Image transfer belt cleaning unit
7. T/B toner collection auger 1
8. T/B toner collection auger 2
9. T/B waste toner sensor feeler
10. Waste toner bottle switch
11. Paper transfer roller
12. Paper transfer roller unit
13. T/B waste toner bottle full sensor
14. Registration roller
15. Image transfer belt
16. Image transfer belt cleaning unit
17. Image transfer belt mark sensor
18. OPC belt cleaning brush
19. O/B waste toner sensor feeler
20. O/B waste toner bottle full sensor
21. O/B waste toner bottle switch
22. O/B toner collection auger 1
23. OPC belt cleaning unit
24. Charge corona unit
25. Laser optics unit
26. M development unit
27. C development unit
28. OPC belt support
29. Y development unit
30. K development unit
B051D352.WMF
10
11
12
13
14
15
16
17
18
19
20
2122 23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
9
30
