26 July 2002 SPECIAL TOOLS
3-1
Replacement
Adjustment
3. REPLACEMENT AND ADJUSTMENT
!CAUTION
Turn off the main power switch and unplug the machine before beginning
any of the procedures in this section.
NOTE: This manual uses the following symbols.
☛ : See or Refer to ! : Screws " : Connector # : Clip ring
$ : E-ring
3.1 SPECIAL TOOLS
Part Number Description Q’ty
A0069104 Scanner Positioning Pin (4 pcs/set) 1
N8036701 Flash Memory Card - 4MB 1
A0929503 C4 Color Test Chart (3 pcs/set) 1
C4019503 20X Magnification Scope 1

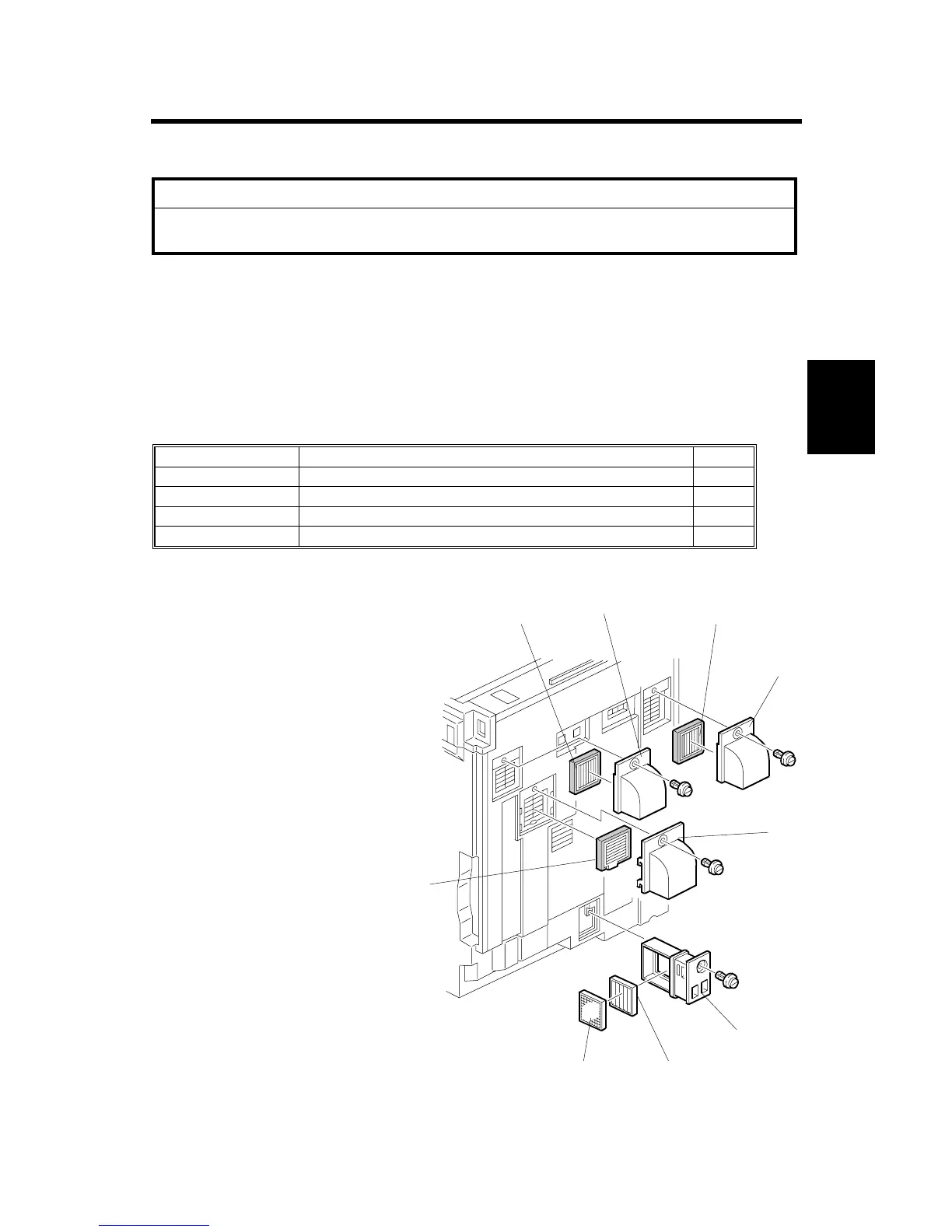

3.2 FILTERS
1. Filter covers [B, D, and E]
2. Exhaust filters [A, C, G, and I]
3. Filter holder [F]
4. Ozone filter [H]
B051R819.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G] [H]
[I]
