LASER UNIT 26 July 2002
3-14

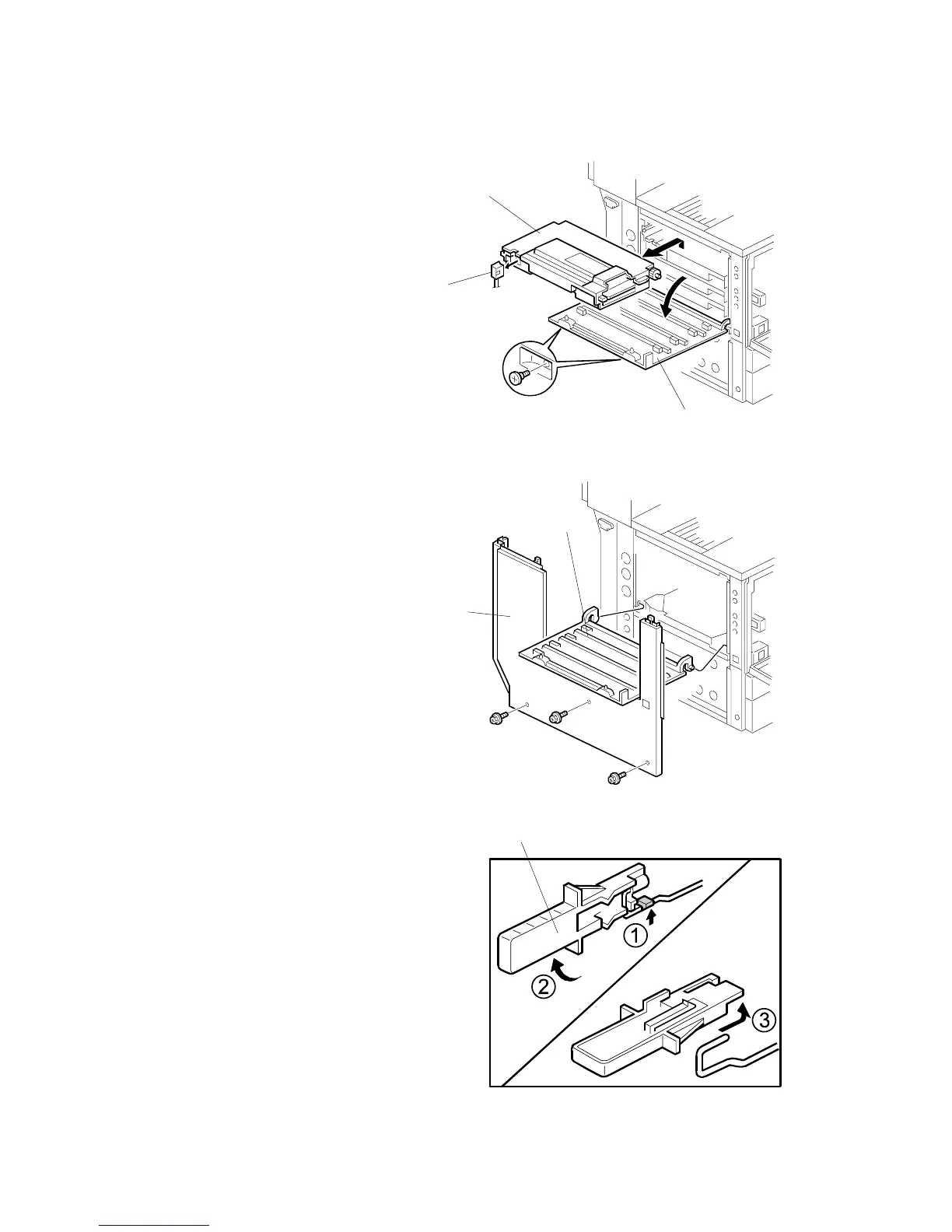

8. Open the left cover [A] (! x 2).
9. ID chip connectors [B] (" x 4)
10. Development units [C] x 4 ( 3.5)
11. Left cover [D]
12. Lower left cover [E] (! x 3)
13. Open the front cover.
14. Dust shield glass cleaner lever [F]
NOTE: The dust shield glass cleaner
lever is the blue lever at the
left side of the charge corona
unit ( 3.6.3).
B051R103.WMF
B051R104.WMF
B051R909.WMF
[C]
[A]
[E]
[D]
[B]
[F]
