26 July 2002 TRAY HEATER (OPTIONAL LCT)
1-57
Installation
1.20 TRAY HEATER (OPTIONAL LCT)
!CAUTION
Unplug the main machine power cord before starting the following
procedure.

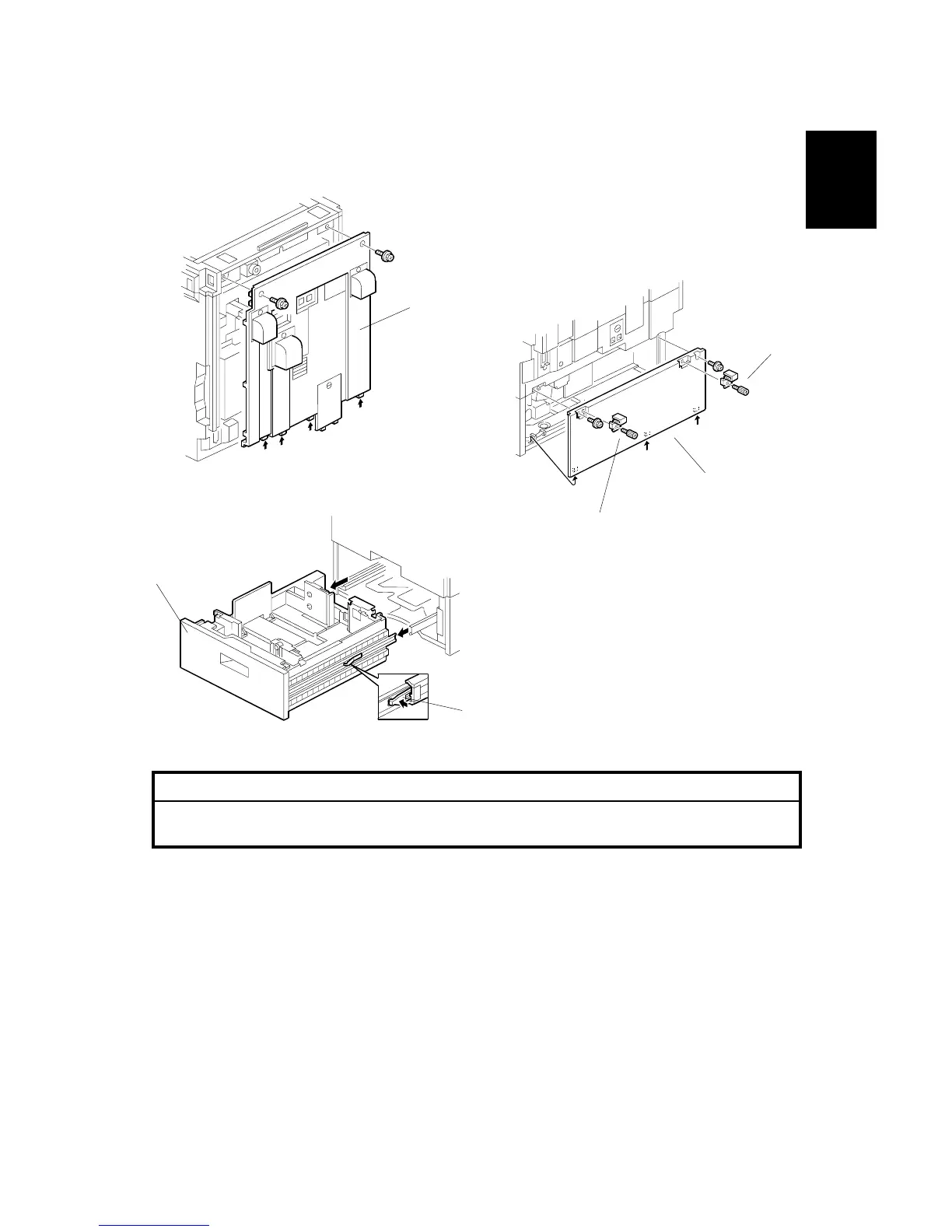

1. Remove the rear cover for the main machine [A] (! x 2).
2. Remove the joint brackets [B] (! x 1 each).
3. Remove the rear cover for the optional LCT [C] (! x 2).
4. Slide out the paper tray [D] from the optional LCT.
5. Push stopper [E] on the right slide rail and remove the paper tray.
B457I554.WMF
B457I502.WMF
B457I501.WMF
[C]
[B]
[B]
[A]
[D]
[E]
