26 July 2002 BY-PASS FEED UNIT (B490)
1-33
Installation
1.9 BY-PASS FEED UNIT (B490)
1.9.1 ACCESSORY CHECK
Check the quantity and condition of the components against the following list.
No. Description Q’ty
1 By-pass Tray Unit 1
2 Tapping Screw 3
1.9.2 INSTALLATION PROCEDURE
!CAUTION
Unplug the copier power cord before starting the following procedure.
1. Remove all tapes (see the diagram at the top of the page).
2. Remove the entrance cover [A] (!x 2).

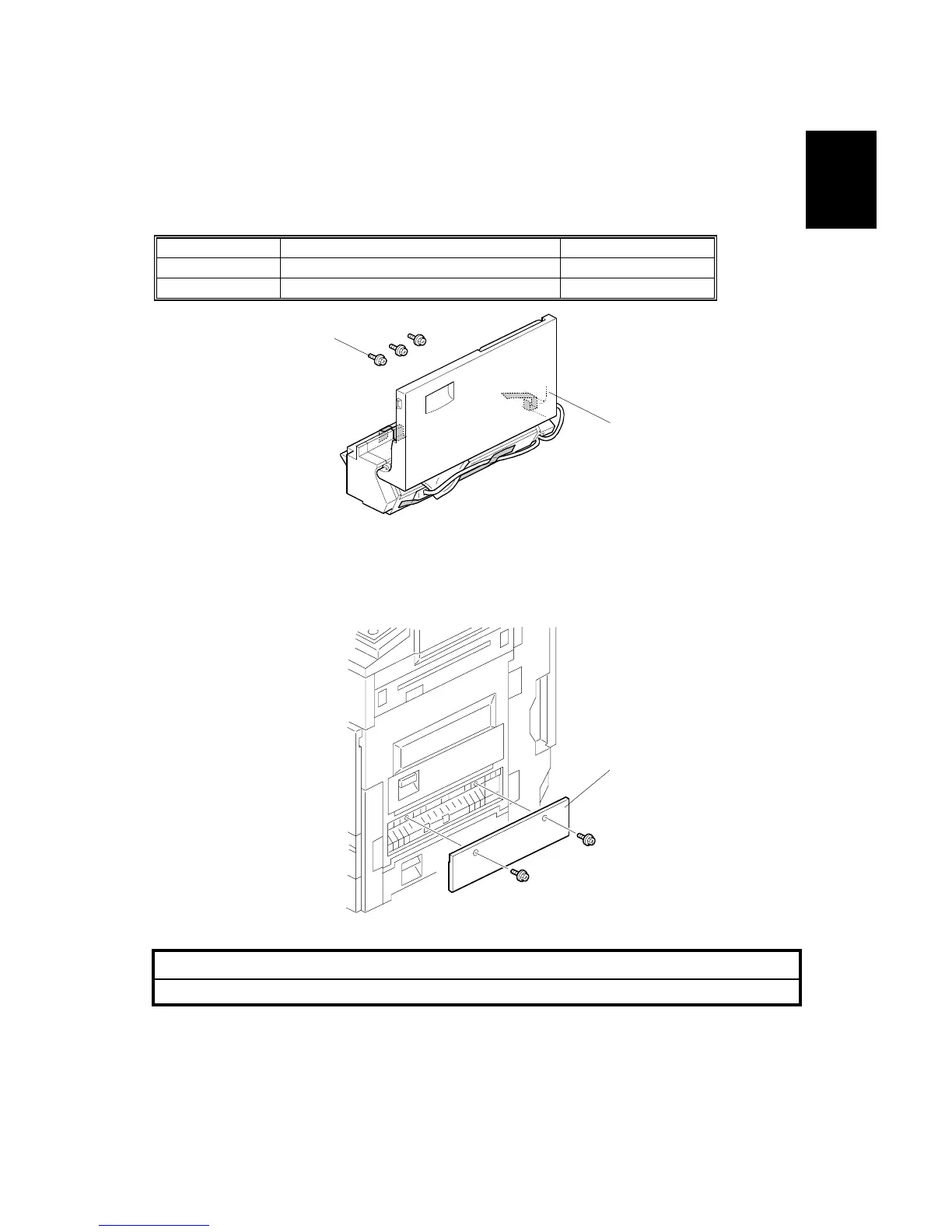

B490I001.WMF
B490I113.WMF
1
2
[A]
