Ricoh U-C1 B051 - Drive Components; Component Layout; Layout

26 July 2002 OVERVIEW
6-3
Detailed
Descriptions

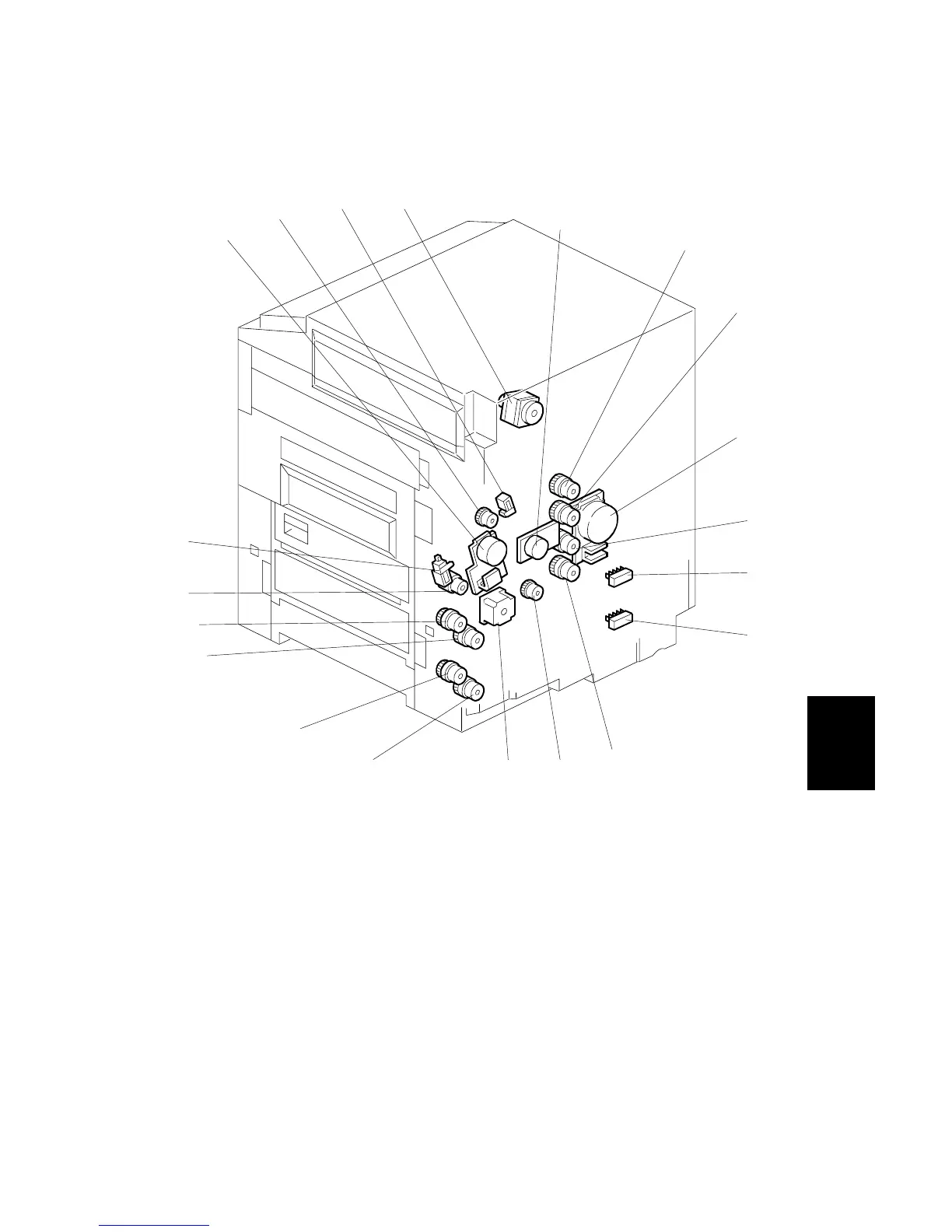

6.1.3 DRIVE COMPONENTS
Layout
1. Fusing unit motor
2. Image transfer belt cleaning clutch
3. Image transfer belt cleaning contact
solenoid
4. Scanner motor
5. Main motor
6. Development clutch - K
7. Development clutch - Y
8. Development motor
9. Development clutch - C
10. Paper size switch 1
11. Paper size switch 2
12. Development clutch - M
13. OPC belt cleaning clutch
14. Paper feed motor
15. Paper feed clutch 2
16. Vertical transport clutch 2
17. Paper feed clutch 1
18. Vertical transport clutch 1
19. Registration clutch
20. Paper transfer solenoid
B051D104.WMF
10
11
12
1314 15
16
17
18
19
1
2
3 4
5
6
7
8
9
20
