Ricoh U-C1 B051 - Fusing Lamps

FUSING/PAPER EXIT 26 July 2002
3-28

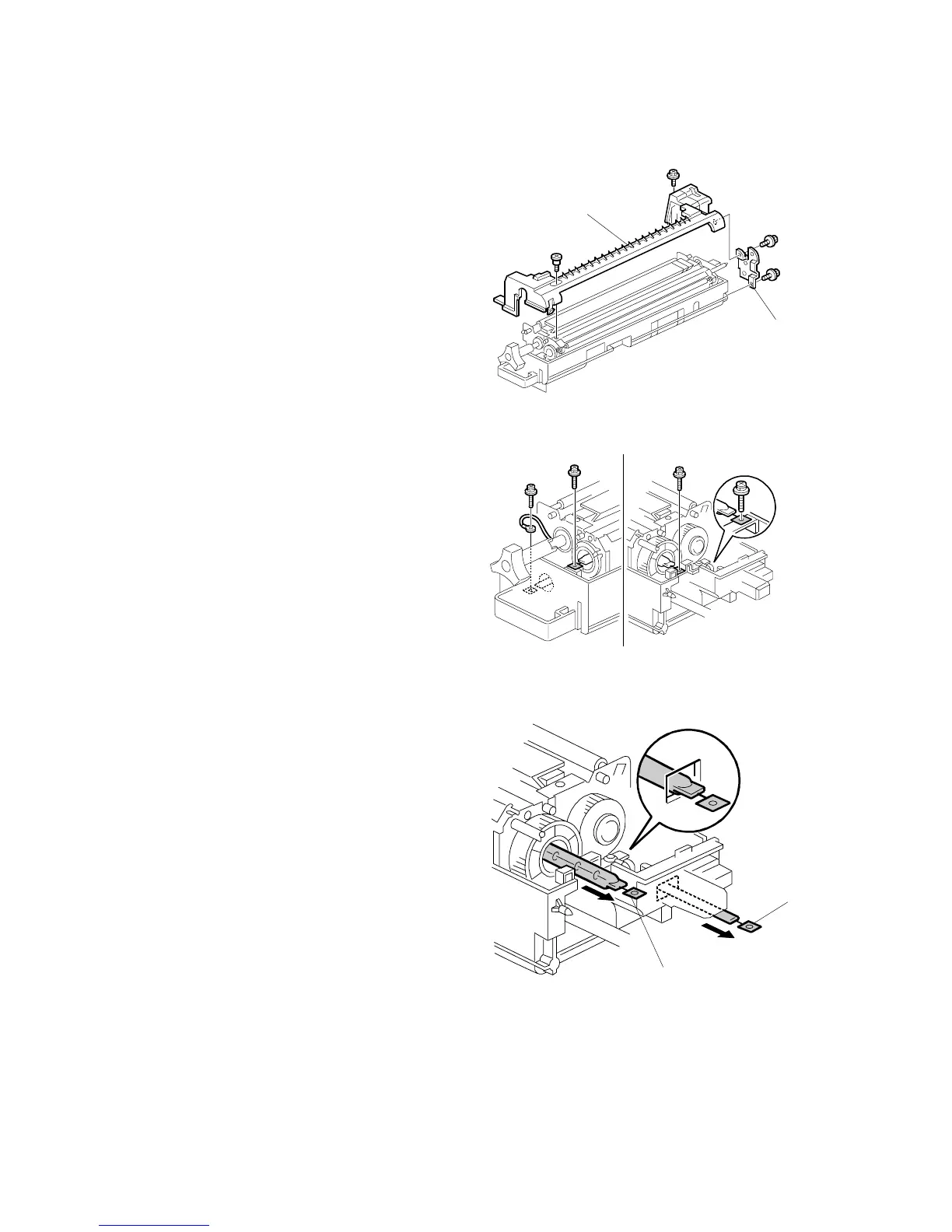

3.8.6 FUSING LAMPS
1. Oil supply unit (☛ 3.8.2)
2. Gear bracket [A] (! x 2)
3. Upper cover [B]
(! x 1, shoulder screw x 1)
4. Pull out the lamp (350W) [C] (! x
2).
5. Pull out the lamp (770W) [D] (! x 2,
Cable x 1).
NOTE: “350W” and “770W” are printed
on the respective terminals.
B051R510.WMF
B051R954.WMF
B051R950.WMF
[B]
[A]
[C]
[D]
