Ricoh U-C1 B051 - Charge Corona Unit, Grid, Wire, and Cleaner

PHOTOCONDUCTOR UNIT (PCU) 26 July 2002
3-22

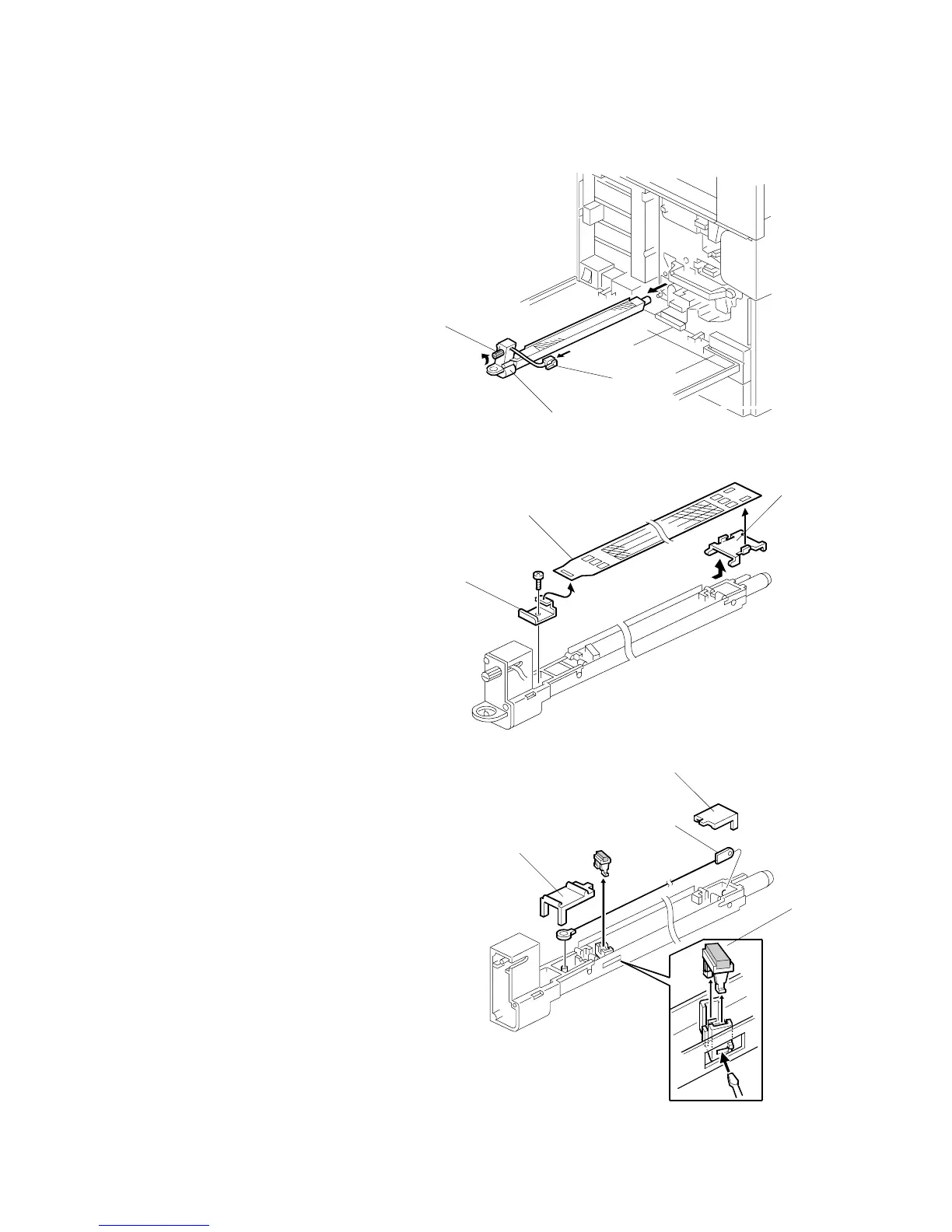

3.6.3 CHARGE CORONA UNIT, GRID, WIRE, AND CLEANER
1. Modular cable [A]
2. Charge corona unit [C] (Loosen !
[B], " x 1)
3. Front bracket (! x 1) [D]
4. Grid [E]
5. Rear bracket [F]
6. Front wire cover [G]
7. Rear wire cover [H]
8. Wire cleaner [I]
9. Unhook the corona wire [J].
