26 July 2002 ELECTRICAL COMPONENTS
3-43
Replacement
Adjustment
3.10 ELECTRICAL COMPONENTS

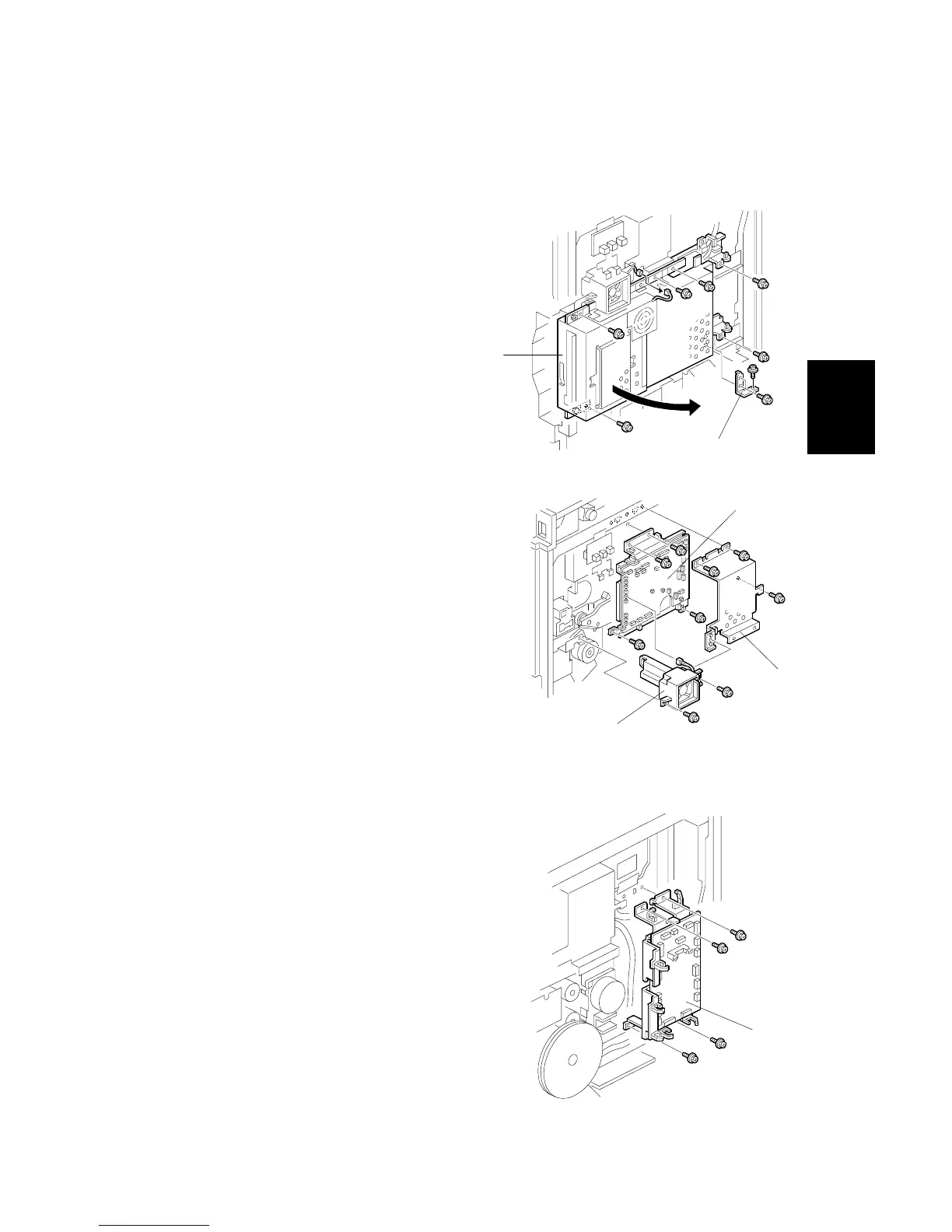

3.10.1 EXHAUST FAN AND I/O BOARD
1. Rear cover (☛ 3.4.2)
2. Bracket [A] (! x 3)
3. Open the controller box [B] (! x 6)
4. Exhaust fan [C] (! x 2)
5. I/O board cover [D] (! x 3)
6. I/O board [E] (" x 29, ! x 4)
3.10.2 EX I/O BOARD
1. Open the controller box (☛ 3.9.2)
2. Ex I/O board [A] (" x 14, ! x 4)
B051R605.WMF
B051R801.WMF
B051R802.WMF
[C]
[D]
[E]
[B]
[A]
[A]
