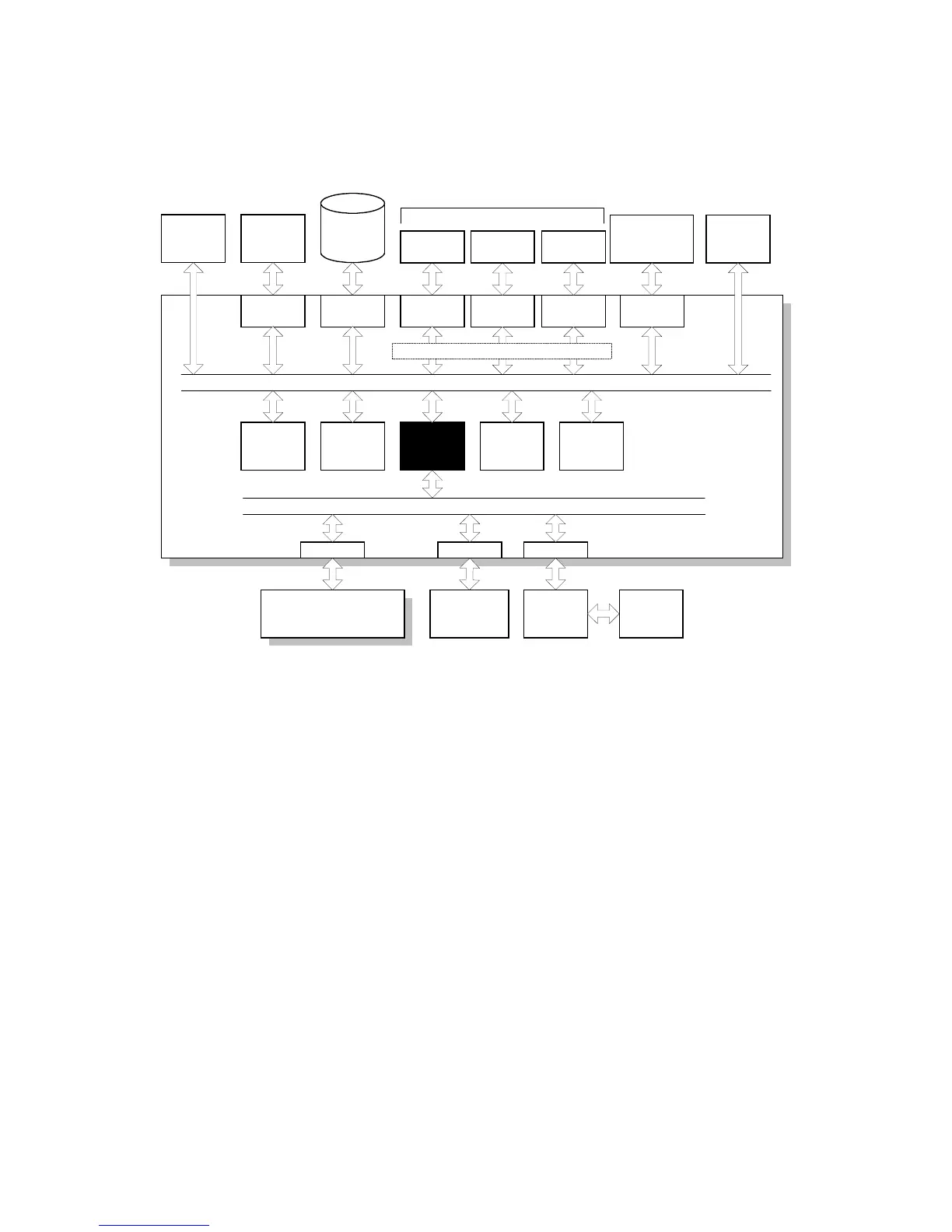

6.2.2 CONTROLLER
The controller uses GW (Ground Work) architecture, which allows the board to
control all applications (copier, printer, scanner, and fax).
To add an optional printer, scanner, or fax application, install a ROM DIMM on the
controller. The fax option, however, requires FCU and NCU installation also.
Systems and application software can be downloaded from the controller’s IC Card
slot. For details about how to download software from an IC card (☛ 5.2).
IEEE1284 IC Card
RAM
(128/256 MB)
NIB
IC Card I/F IDE Slot 1
Slot 2
SDRAM
DIMM
System
Flash ROM
(8 MB)
On-board
SDRAM
(128 MB)
CELLO
CPU
NVRAM
(32 kB)
PCI
OPTION OPTION
2.5" HDD
CONTROLLER
PCIPCI
BICU
FCU NCU
OPTION
IEEE1394/
Wireless LAN
OPTION
PCI BUS
Local BUS
OPTION
Slot 3
Flash ROM DIMM (4/8 MB)
OPTION
Net File/
Scanner
PS3Printer
OPTION
B529D500.WMF
