IMAGE FUSING AND PAPER EXIT 26 July 2002
6-62
6.12 IMAGE FUSING AND PAPER EXIT

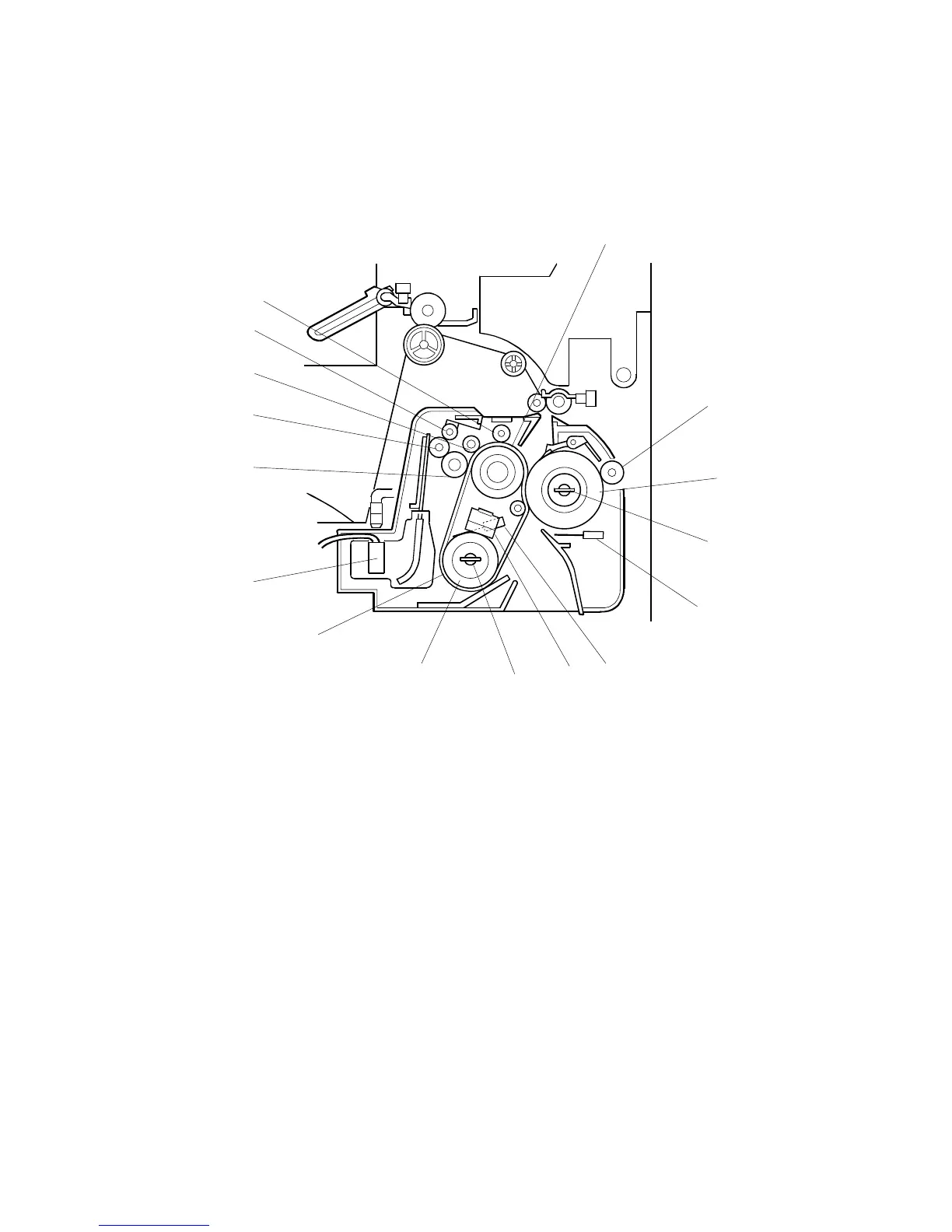

6.12.1 OVERVIEW
1. Hot roller
2. Metal cleaning roller
3. Pressure roller
4. Pressure roller fusing lamp
5. Pressure roller thermistor
6. Heating roller thermistor
7. Thermostat
8. Heating roller fusing lamp
9. Heating roller
10. Fusing belt
11. Oil overflow sensor
12. Oiling roller
13. Oil supply roller
14. Fusing sponge roller
15. Spring roller
16. Metal cleaning roller
The fusing unit divides into two subunits: the fusing subunit and the oil supply
subunit.
B051D502.WMF
2
6
7
10
14
3
4
5
13
12
11
8
9
1
15
16
