5.1.10 APS OUTPUT DISPLAY (SP4-301)
SP4-301 displays a code that indicates the current status of the APS sensors. The
table lists the codes and the activated sensors.
Sensors
Code
W1 W2 L1 L2 L3
38
❍ ❍
— — —
160
❍ ❍ ❍ ❍ ❍
164 — —
❍ ❍ ❍
166 — —
❍ ❍
—
128 Other combinations
❍: Activated
—: Deactivated

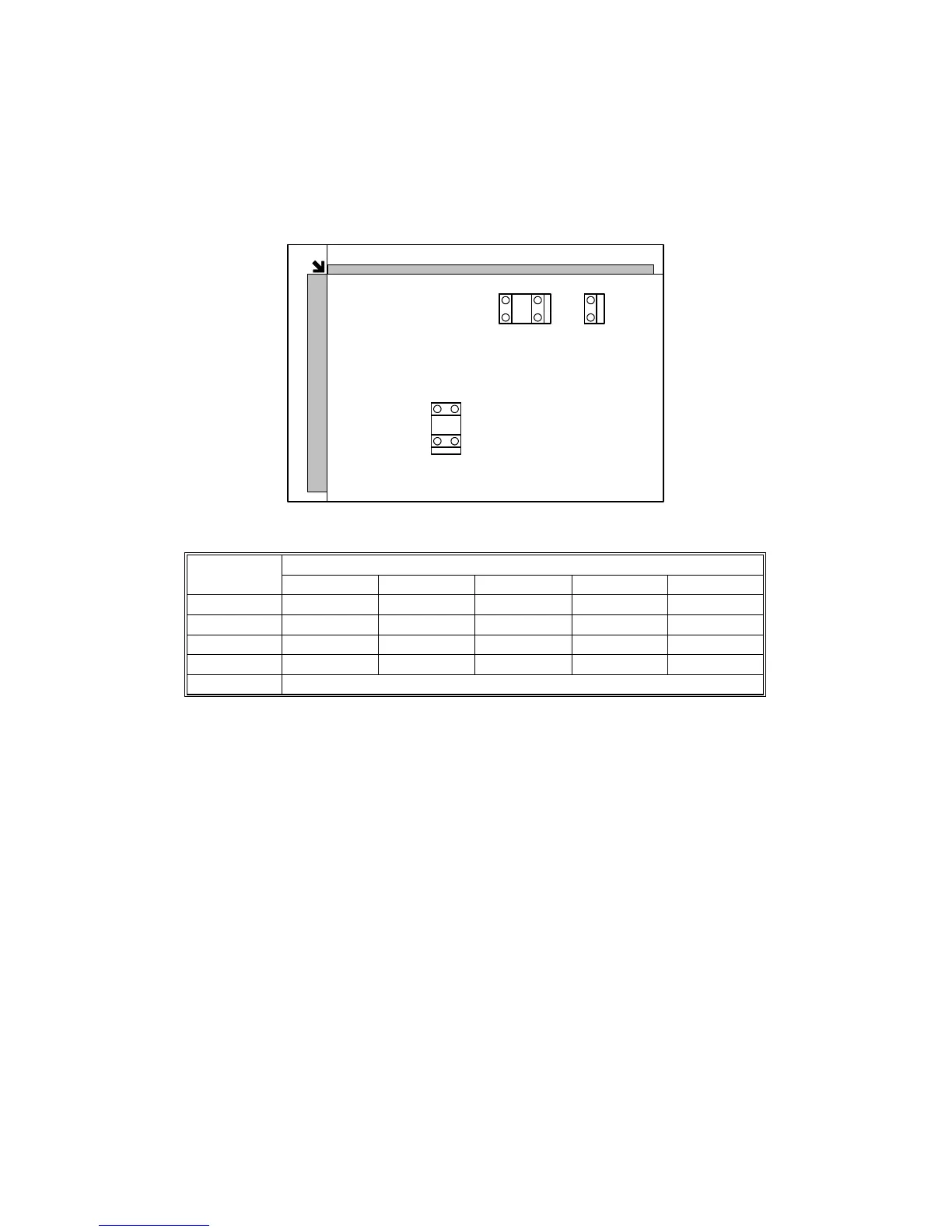

W1
W2
L3L2L1
B051S540.WMF
