Ricoh U-C1 B051 - Paper Transfer Unit; Transfer Roller; Vertical Transport Unit

PAPER TRANSFER UNIT 26 July 2002
3-24

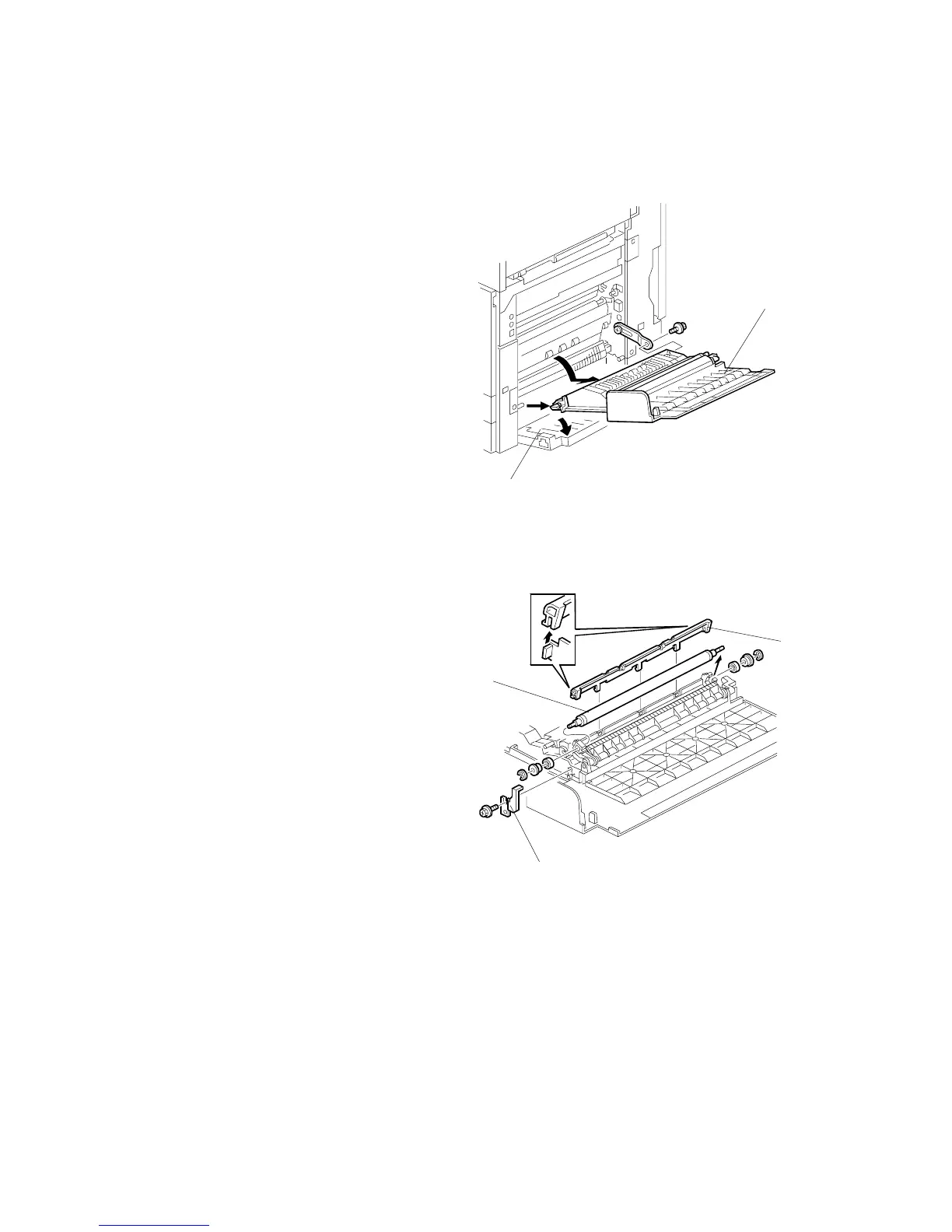

3.7 PAPER TRANSFER UNIT
3.7.1 VERTICAL TRANSPORT UNIT
1. Open the right lower cover [A].
2. Right cover [B] (! x 1)
3.7.2 TRANSFER ROLLER
1. Brace [A] (! x 1)
2. Guide [B]
NOTE: To remove the screws,
turn the roller unit on its
pivot.
3. Transfer roller [C]
($ x 2, Bushing x 2, Bearing x 2)
B051R401.WMF
B051R403.WMF
[B]
[B]
[A]
[C]
[A]
