26 July 2002 SCANNER UNIT
3-5
Replacement
Adjustment

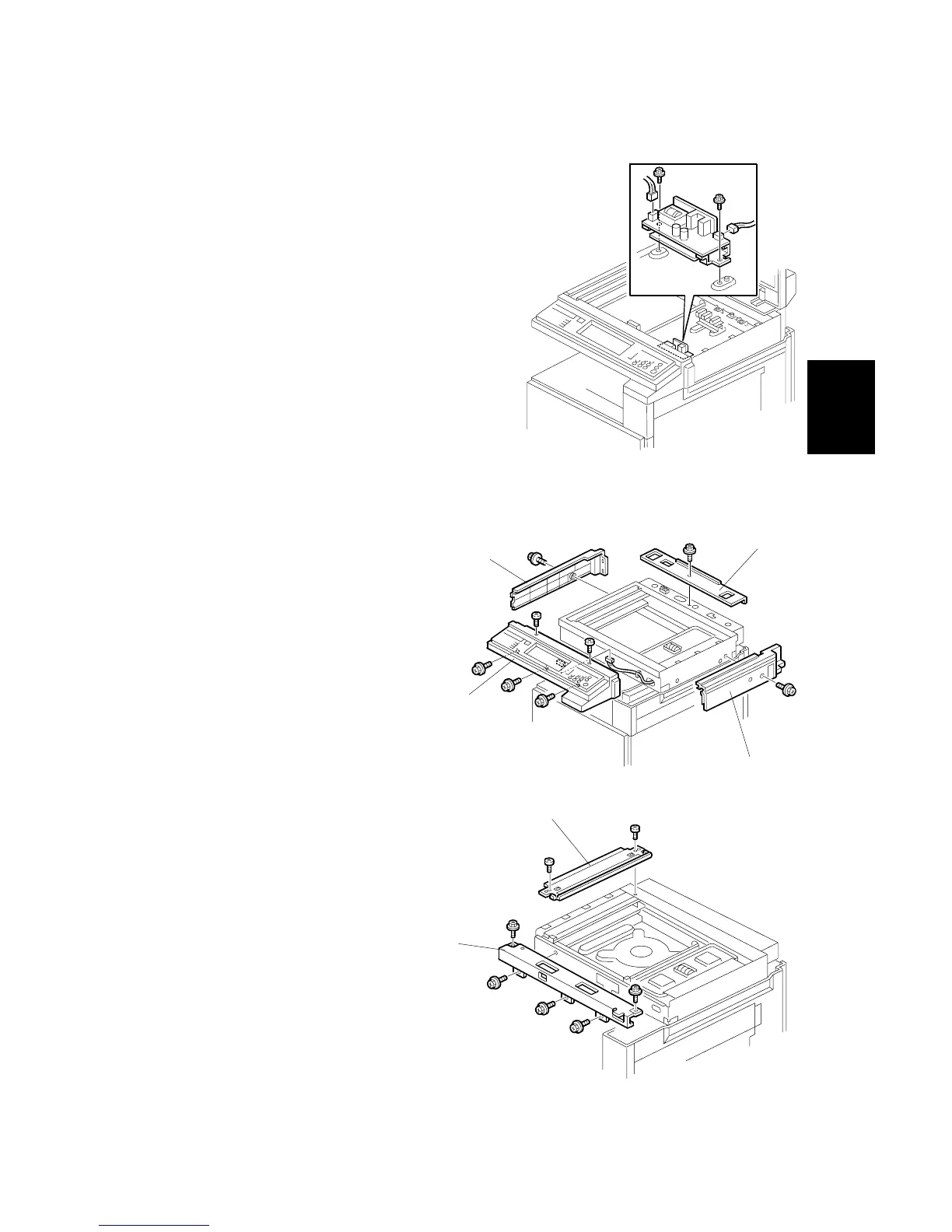

3.3.4 EXPOSURE LAMP STABILIZER
1. Lens block assembly ( 3.3.3)
2. Exposure lamp stabilizer [A]
(! x 2, " x 2)
3.3.5 SCANNER LAMP
1. Exposure glass ( 3.3.1)
2. Rear cover ( 3.4.2)
3. Operation panel [A]
(! x 5, " x 1)
4. Scanner right cover [B] (! x 1)
5. Scanner left cover [C] (! x 1)
6. Scanner rear cover [D] (! x 1)
7. Left frame [E] (! x 2)
8. Front frame [F] (! x 5)
B051R006.WMF
B051R002.WMF
B051R009.WMF
[A]
[B]
[C]
[F]
[E]
[A]
[D]
