SCANNER UNIT 26 July 2002
3-6

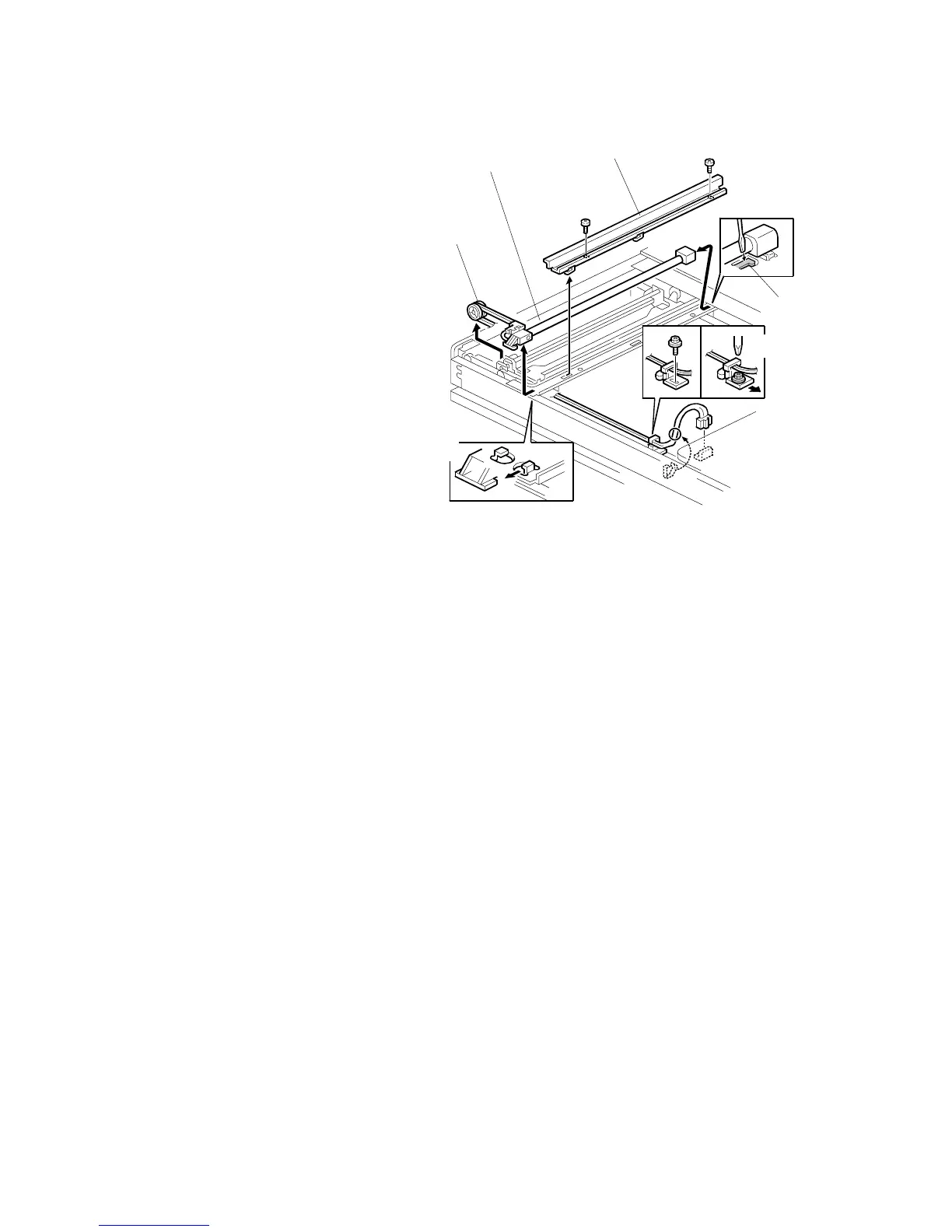

9. Lamp guard [A] (! x 2)
10. Pulley [B]
NOTE: Use caution not to
bend the pulley guides.
11. Push down the part [C], then
slide out the scanner lamp.
12. Slide out the scanner lamp [D]
and unhook it from the clamps
[E].
NOTE: After replacing the
scanner lamp, adjust
the scanner white level
(☛ 3.14).
Reassembling
1. Take up the cable slack.
NOTE: Make sure the cable is not dangling and the wires are not crossed.
2. Adjust the cable clamp position [F] if necessary.
NOTE: Do not open the clamp.
B051R012.WMF
[A]
[B]
[D]
[E]
[F]
[C]
