26 July 2002 TOUCH SCREEN CALIBRATION
3-69
Replacement
Adjustment

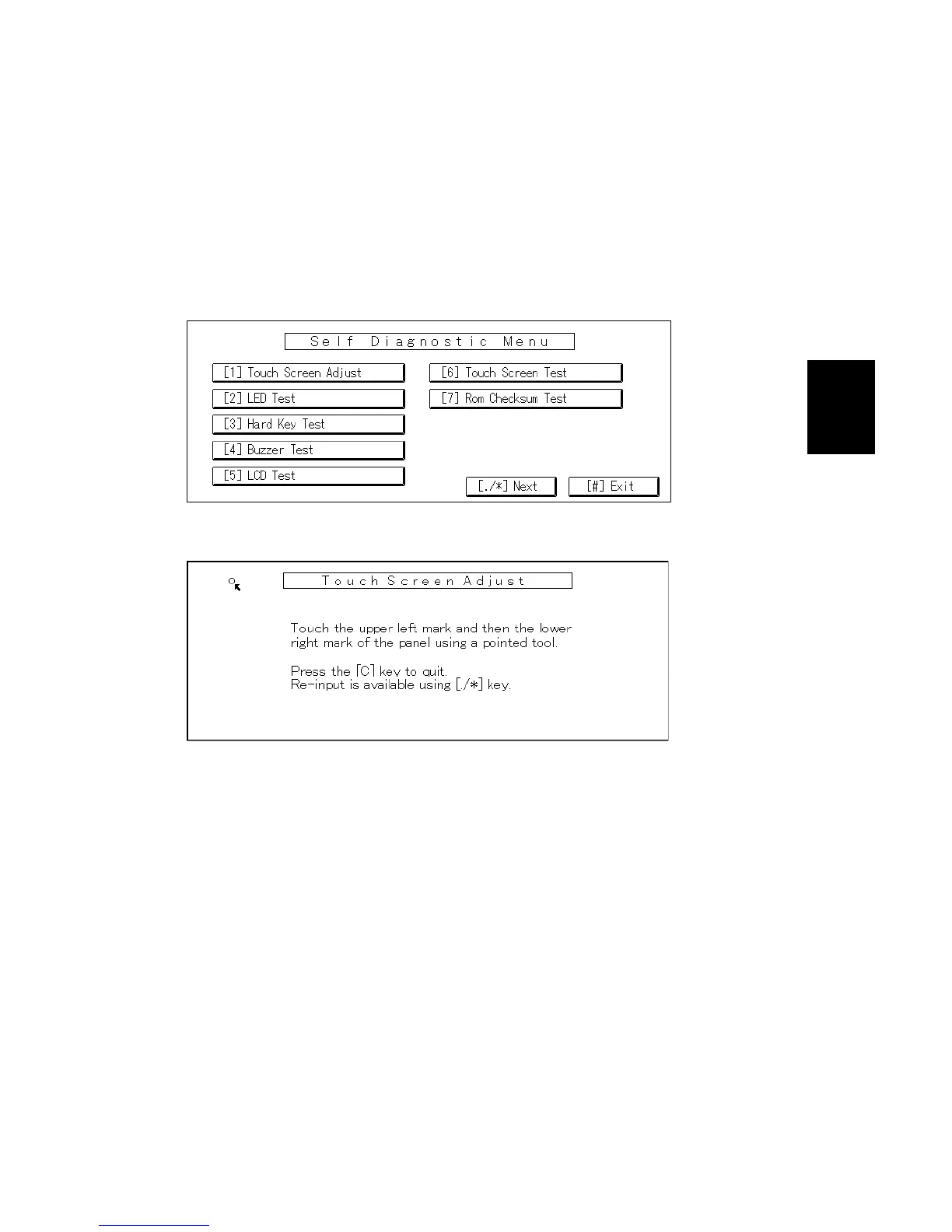

3.15 TOUCH SCREEN CALIBRATION
After clearing the memory, or if the touch screen detection function is not working
correctly, follow this procedure to calibrate the touch screen.
NOTE: Do not attempt to use items [2] to [9] on the Self-Diagnostic Menu. These
items are for design use only.
1. Press
", press #$$%, and then press & 5 times to open the Self-
Diagnostics menu.
2. On the touch screen press “Touch Screen Adjust” (or press #).
3. Use a pointed (not sharp!) tool to press the upper left mark %.
4. Press the lower right mark & after it appears.
5. Touch a few spots on the touch screen to confirm that the marker (
+) appears
exactly where the screen is touched.
If the
+ mark does not appear where the screen is touched, press Cancel and
repeat from Step 2.
6. When you are finished, press [#] OK on the screen (or press
').
7. Touch [#] Exit on the screen to close the Self-Diagnostic menu and save the
calibration settings.
B051R533.WMF
B051R554.WMF
