Ricoh U-C1 B051 - Paper End Sensor 1; Paper End Sensor 2

PAPER FEED AND TRANSPORT 26 July 2002
3-42

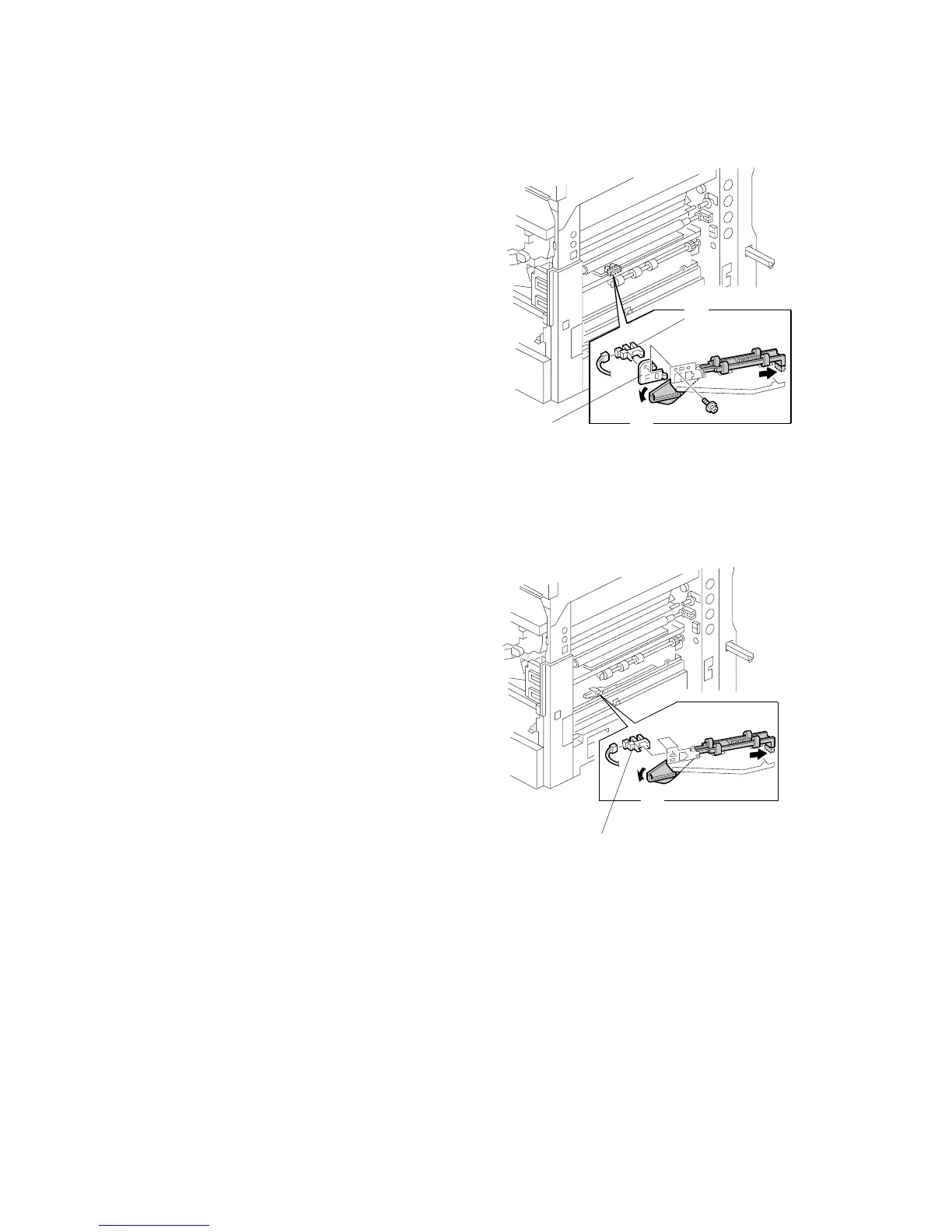

3.9.6 PAPER END SENSOR 1
1. Transport stay (☛ 3.9.2)
2. Lower the feeler [A].
3. Sensor bracket [B] (! x 1)
4. Paper end sensor 1 [C] (" x 1)
3.9.7 PAPER END SENSOR 2
1. Transport stay (☛ 3.9.2)
2. Lower the feeler [A].
3. Paper end sensor 2 [B] (" x 1)
B051R611.WMF
B051R615.WMF
[B]
[A]
[B]
[C]
[A]
