Ricoh U-C1 B051 - 3.4.2 LASER UNIT REPLACEMENT

26 July 2002 LASER UNIT
3-13
Replacement
Adjustment

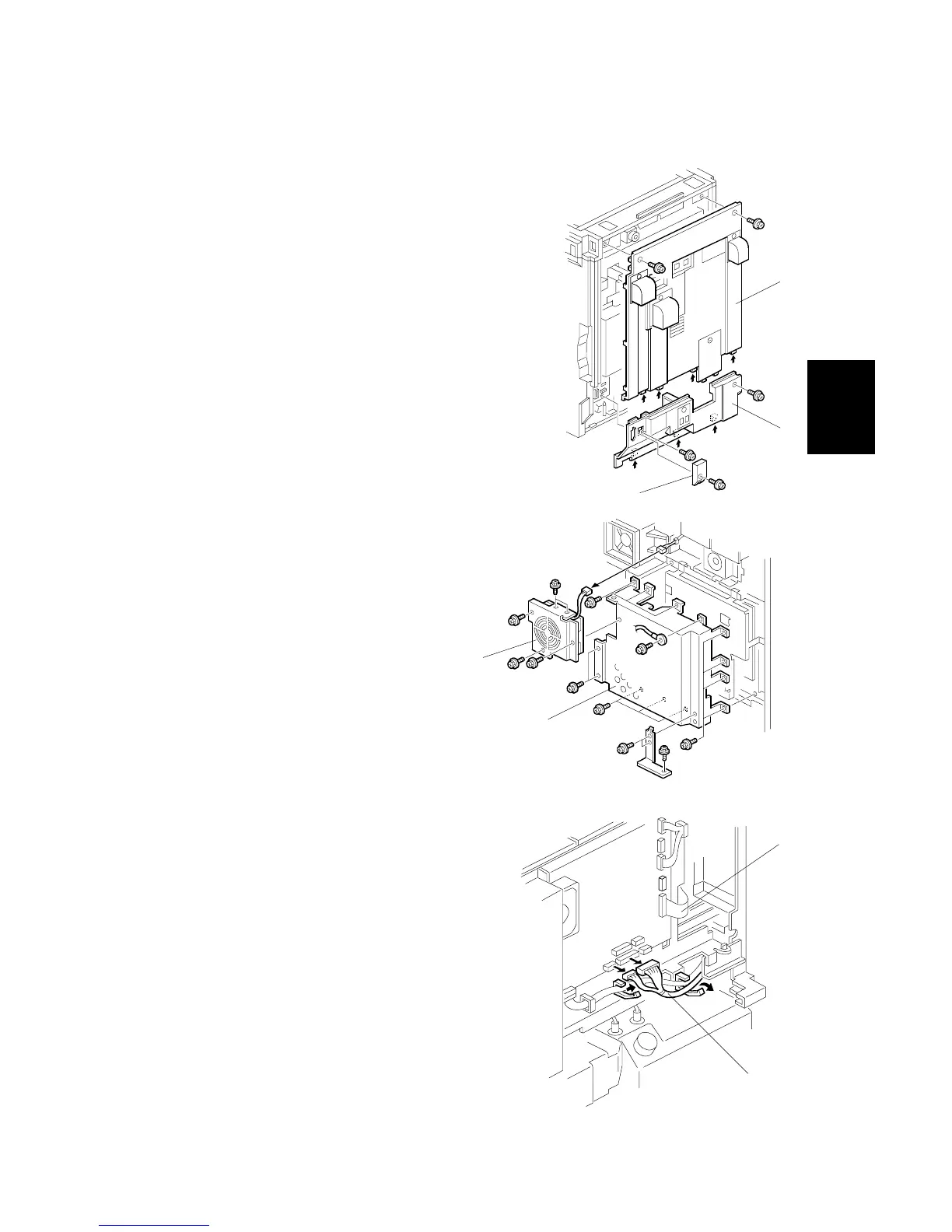

3.4.2 LASER UNIT
1. Rear cover [A] (! x 2)
2. Connector cover [B] (! x 1)
3. Lower rear cover [C] (! x 2)
4. Fan [D] (! x 5)
5. BICU cover [E] (! x 11)
6. Flat cable [F]
7. LD unit cables [G] (" x 2)
B051R101.WMF
B051R924.WMF
B051R102.WMF
[A]
[C]
[B]
[G]
[F]
[D]
[E]
