Ricoh U-C1 B051 - Fusing Inner Unit; Pressure Roller Thermofuse

26 July 2002 FUSING/PAPER EXIT
3-29
Replacement
Adjustment

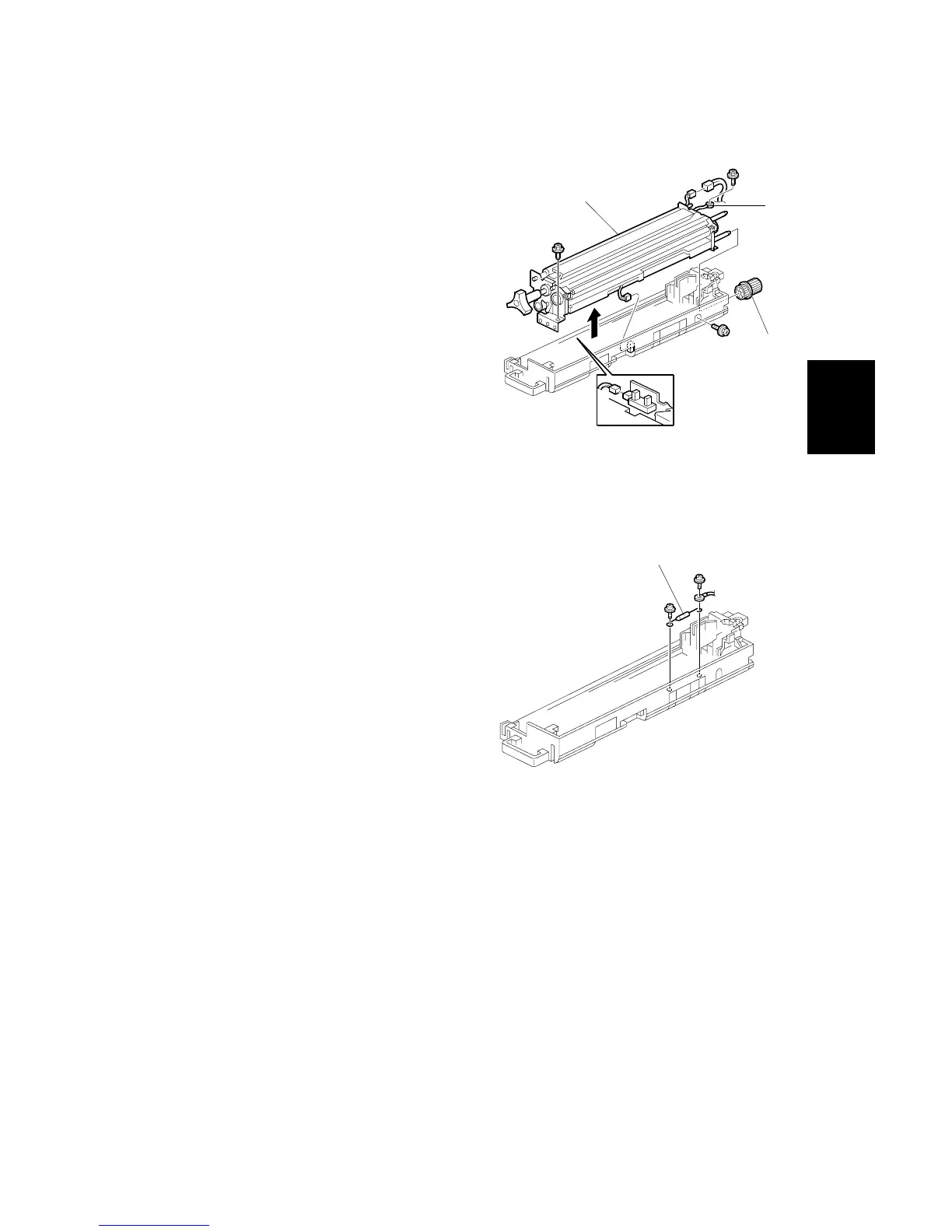

3.8.7 FUSING INNER UNIT
1. Lamps (☛ 3.8.6)
2. Drive gear [A]
3. Hot roller lamp harness terminal [B]
(! x 1)
4. Fusing inner unit [C] (! x 2, " x 3)
3.8.8 PRESSURE ROLLER THERMOFUSE
1. Fusing inner unit (☛ 3.8.7)
2. Pressure roller thermofuse [A] (! x 2)
B051R512.WMF
B051R958.WMF
[C]
[A]
[A]
[B]
