Ricoh U-C1 B051 - 6.7.3 OPC BELT DRIVE

26 July 2002 PHOTOCONDUCTOR UNIT (PCU)
6-35
Detailed
Descriptions

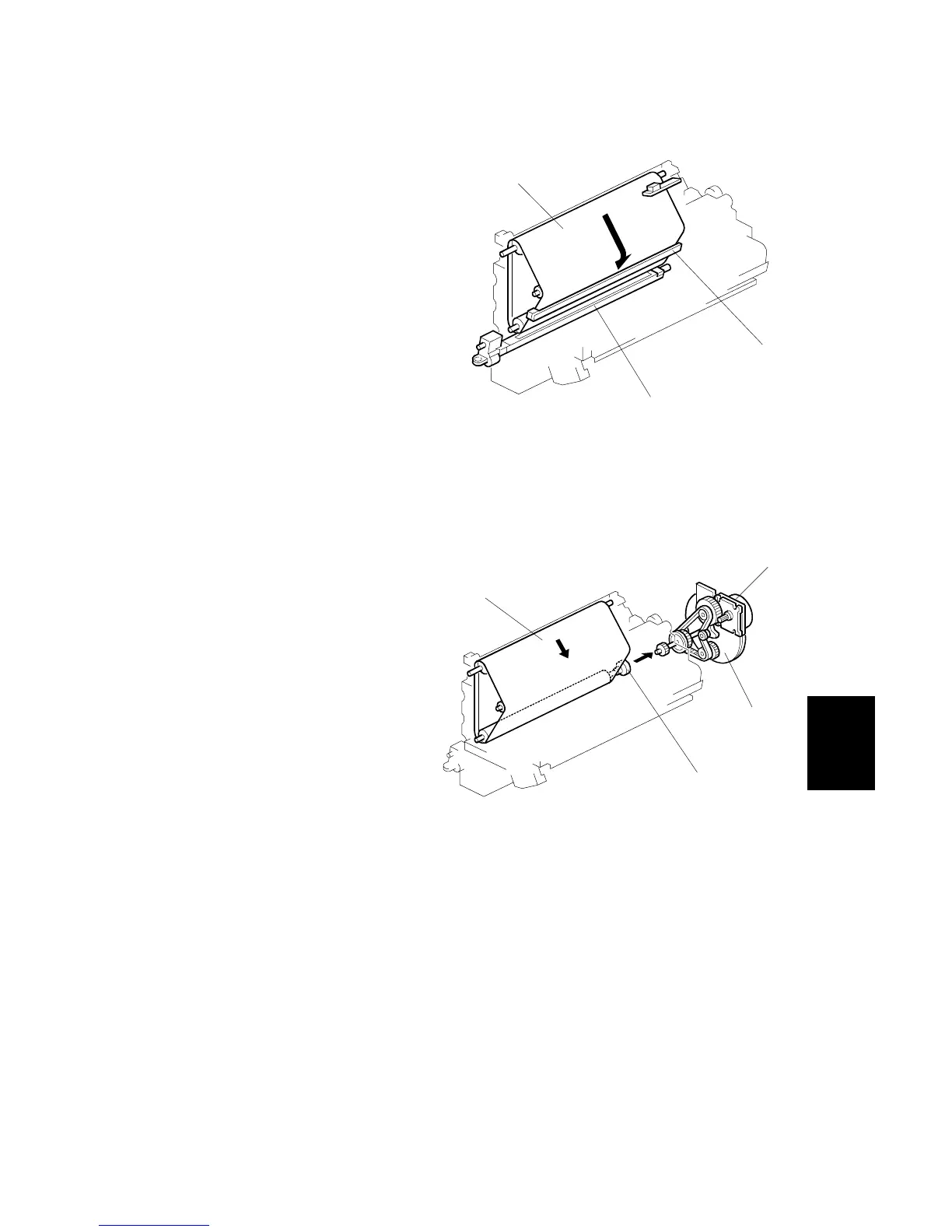

Quenching
[A]: Quenching lamp
[B]: Charge corona unit
[C]: OPC belt
(☛ ! Photocopying Processes – Quenching)
6.7.3 OPC BELT DRIVE
[A]: OPC belt
[B]: Main motor
[C]: Fly wheels
[D]: Bottom shaft
Main motor [B] " Gear " Timing belt " Bottom shaft [D] " OPC belt [A]
The flywheels [C] ensure that the OPC belt moves smoothly.
NOTE: The OPC belt and transfer belt contact each other. If you wish to inspect
the OPC belt by turning it, you must also turn the transfer belt at the same
time to avoid damaging the surfaces of the belts.
B051D309.WMF
B051D308.WMF
[A]
[B]
[C]
[D]
[A]
[B]
[C]
