3.8.11 PRESSURE ROLLER, PRESSURE ROLLER GEAR, AND
CLEANING ROLLER
1. Pressure roller unit (☛ 3.8.10)
2. Gear [A]
3. Spring [B] ($ x 1)
4. Hot roller stripper assembly [C] (! x 2)
5. Front bracket [D] (! x 1)
6. Bearing [E]
7. Pressure roller [F]
8. Cleaning roller [G]

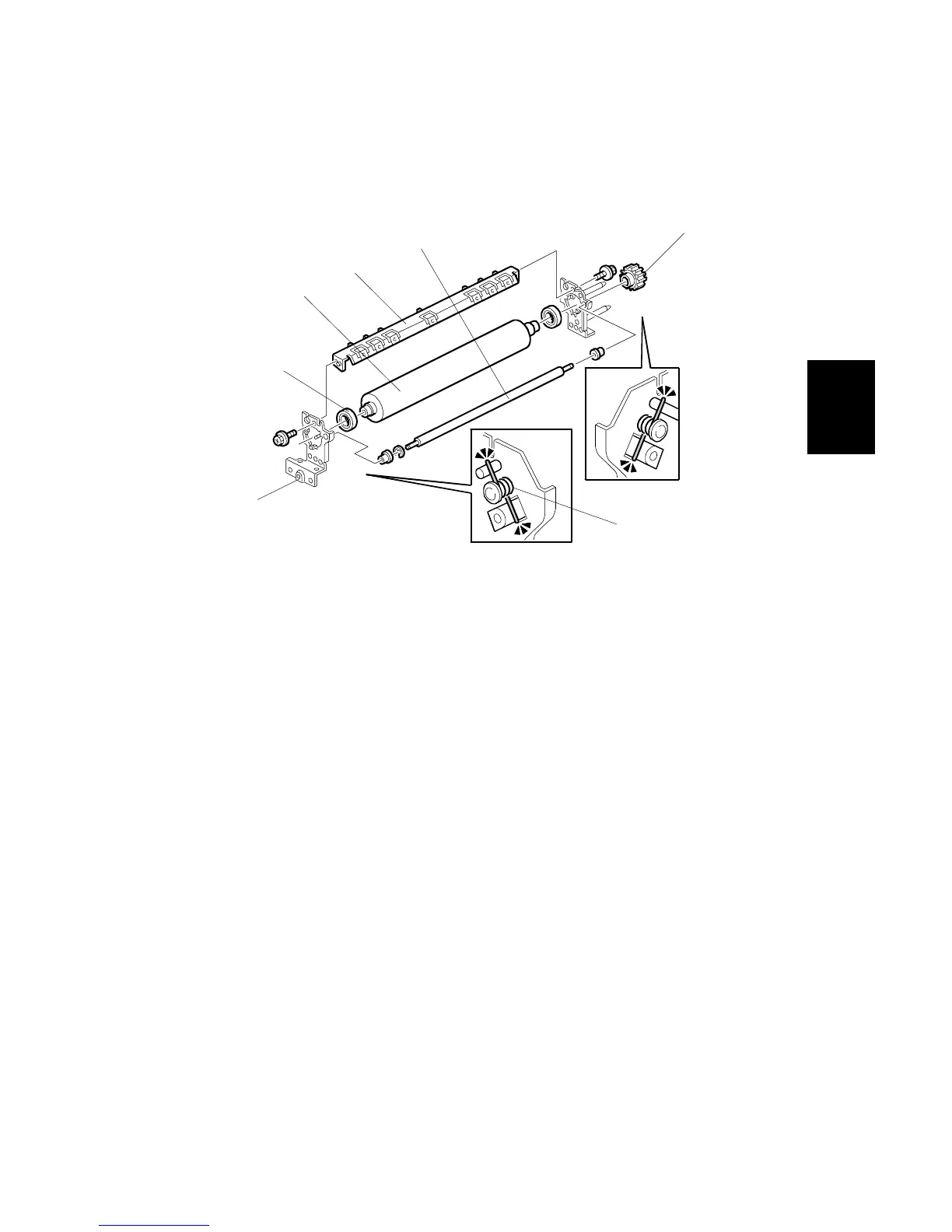

B051R505.WMF
[A]
[C]
[D]
[E]
[F]
[G]
[B]
