26 July 2002 ELECTRICAL COMPONENTS
3-45
Replacement
Adjustment

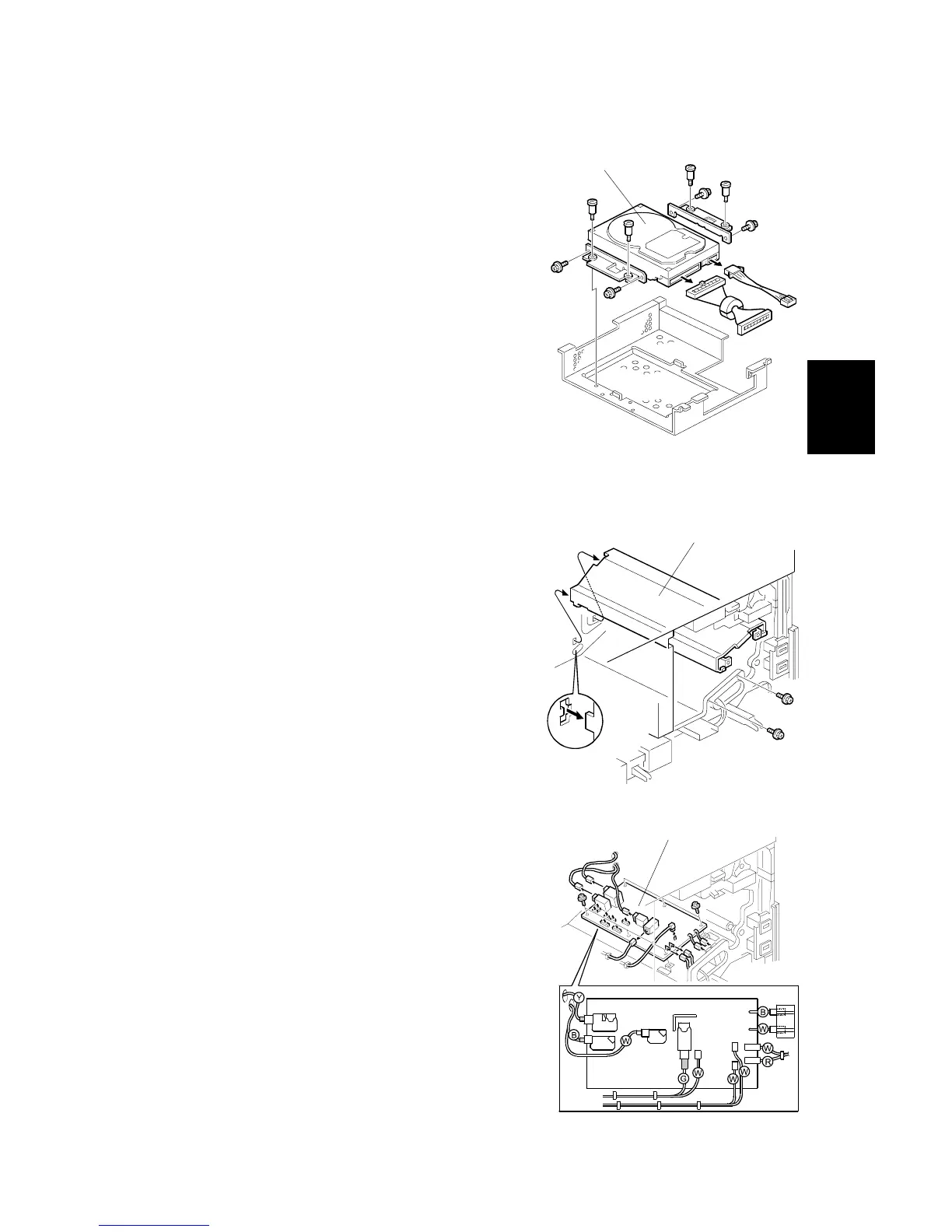

3.10.4 HDD
1. Optional component cover (☛ 3.10.3)
2. HDD [A] (" x 2, ! x 8)
After replacing the hard disk, download the
preset stamp data from an IC card.
3.10.5 HIGH VOLTAGE SUPPLY BOARD
1. Photoconductor unit (☛ 3.6)
2. Right inner cover (☛ 3.9.2)
3. Photoconductor unit rail [A] (! x 2)
4. High voltage supply board [B]
(" x 17, ! x 6)
NOTE: When reassembling, check that the
connectors are correctly set.
B051R823.WMF
B051R816.WMF
B051R824.WMF
[A]
[A]
[B]
