FUSING/PAPER EXIT 26 July 2002
3-26

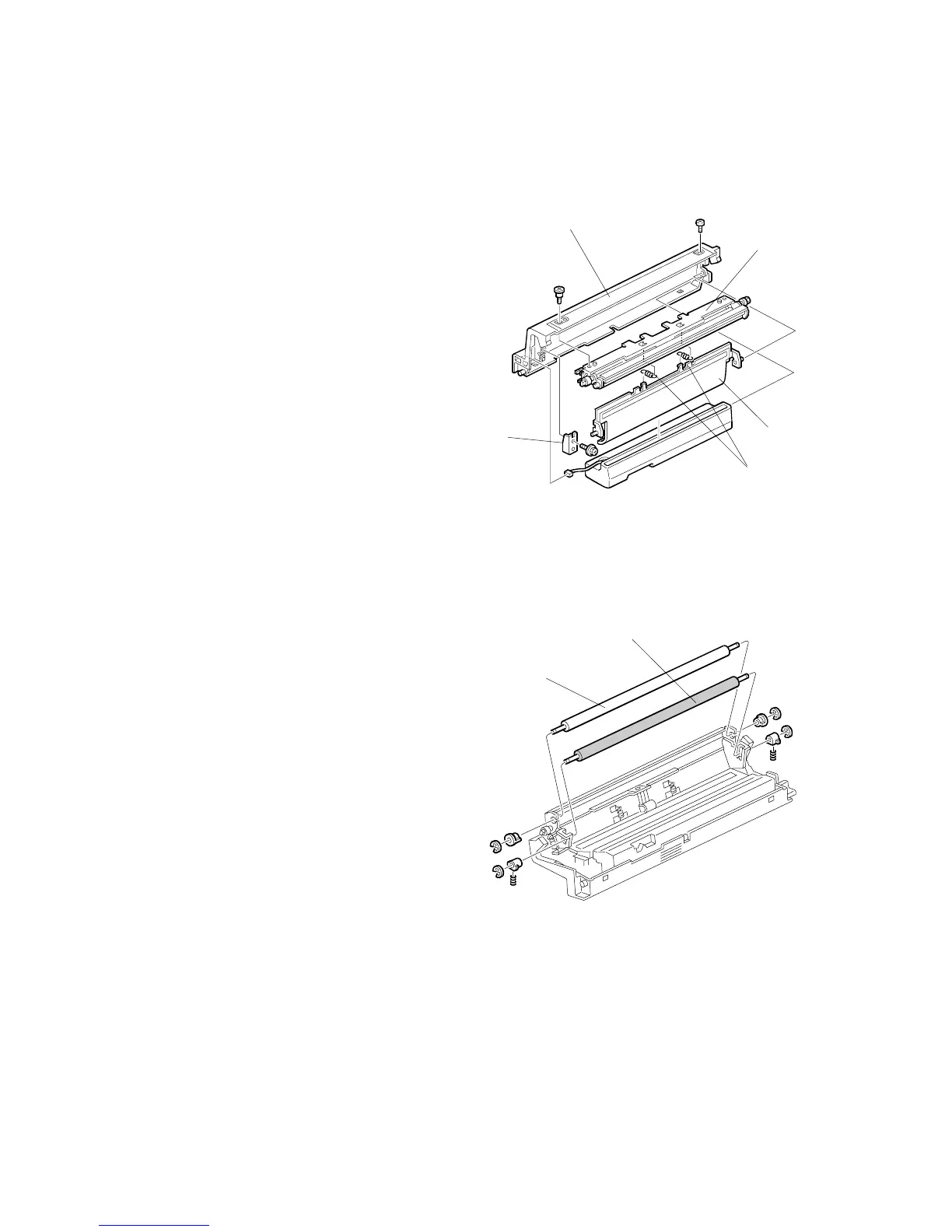

3.8.3 OIL SUPPLY PAD
CAUTION: Empty silicone oil out of the oil supply unit into a vessel or container
before beginning the following steps.
1. Oil supply unit [A] (☛ 3.8.2)
2. Springs [B] x 2
3. Cleaning roller assembly [C]
(! x 1, Shoulder screw x 1)
4. Stay [D] (! x 1)
5. Slide the pad [E] and pull it out.
NOTE: If you cannot put the springs in the
places, remove the cleaning roller
(☛ 3.8.4).
3.8.4 CLEANING ROLLER AND FUSING SPONGE ROLLER
1. Oil supply unit (☛ 3.8.2)
2. Cleaning roller [A] (Bushing x 2, $ x
2)
3. Fusing sponge roller [B] (Bushing x
2, $ x 2, Spring x 2)
