26 July 2002 TRAY HEATER (OPTIONAL PAPER TRAY UNIT)
1-55
Installation
1.19 TRAY HEATER (OPTIONAL PAPER TRAY UNIT)
!CAUTION
Unplug the main machine power cord before starting the following
procedure.

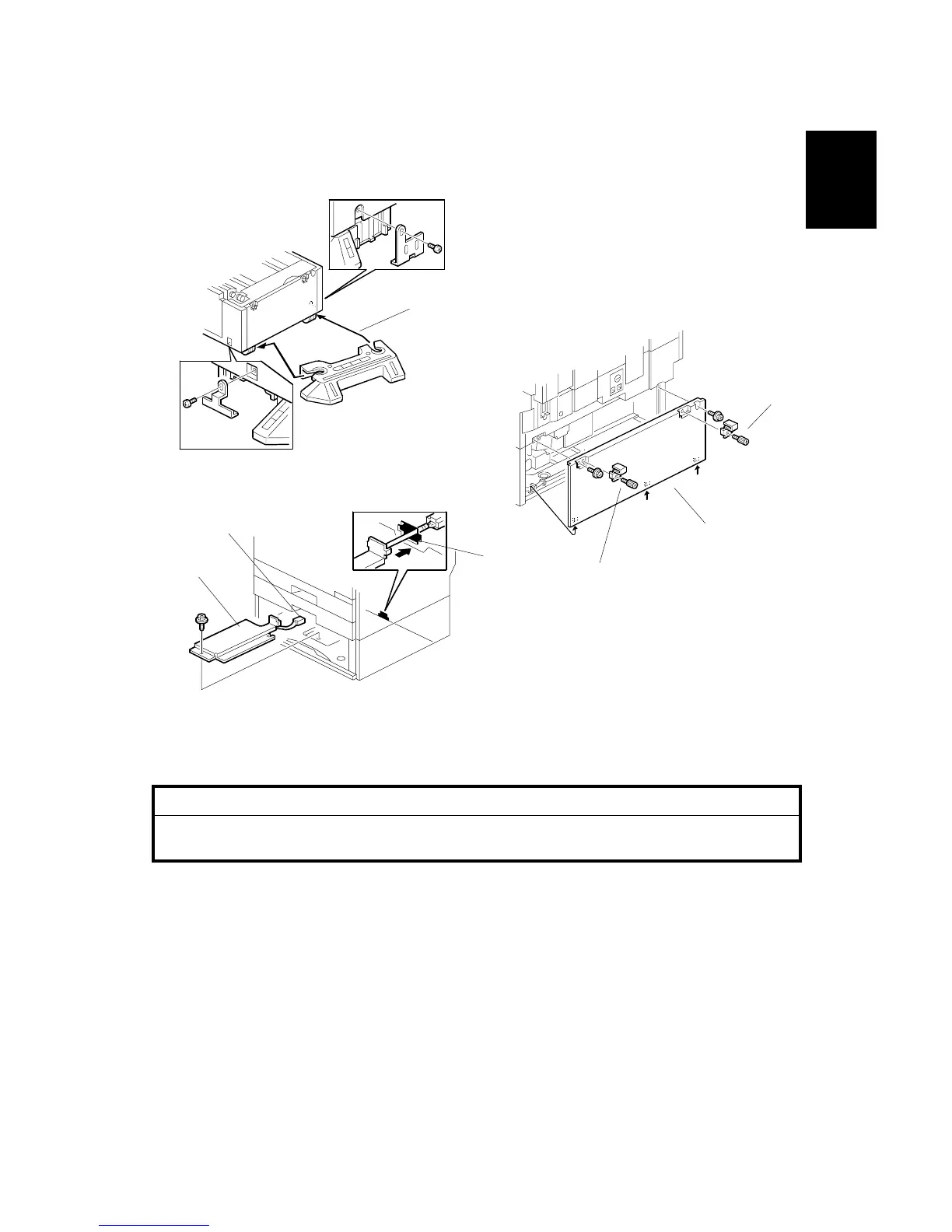

1. Remove the rear cover for the main machine [A] (! x 2).
2. Remove the joint brackets [B] (! x 1 each).
3. Remove the rear cover for the optional paper tray unit [C] (! x 2).
4. Slide out the paper trays from the optional paper tray unit.
5. Pass the connector [D] through the opening [E].
6. Install the tray heater [F] (! x 1).
B456I104.WMF
B456I502.WMF
B456I201.WMF
[D]
[E]
[F]
[A]
[C]
[B]
[B]
To Next Page
