26 July 2002 OVERVIEW
6-7
Detailed
Descriptions

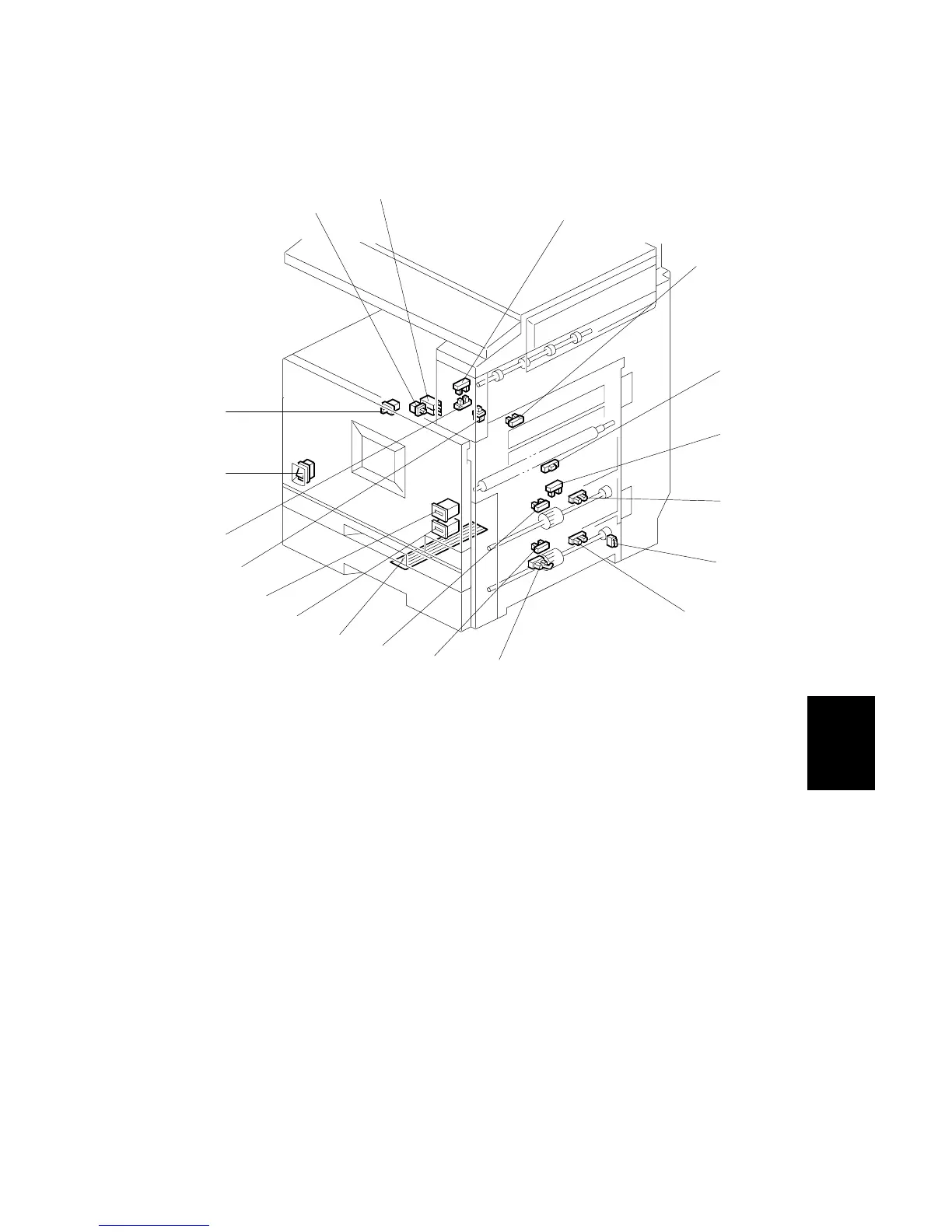

Paper Path
1. Right cover switch
2. Interlock switch
3. Paper overflow sensor
4. Fusing exit sensor
5. Registration sensor
6. Paper feed sensor
7. Paper near-end sensor 1
8. Right lower cover switch
9. Paper near-end sensor 2
10. Vertical transport sensor
11. Paper end sensor 2
12. Paper end sensor 1
13. Tray heater (optional)
14. Mechanical counter 2
15. Mechanical counter 1
16. Exit cover switch
17. Paper exit sensor
18. Main power switch
19. Front cover switch
B051D111.WMF
1
2
3
5
7
9
6
4
10
11
12
13
8
19
18
17
16
15
14
