3.9 PAPER FEED AND TRANSPORT
3.9.1 FEED ROLLER AND FRICTION PAD

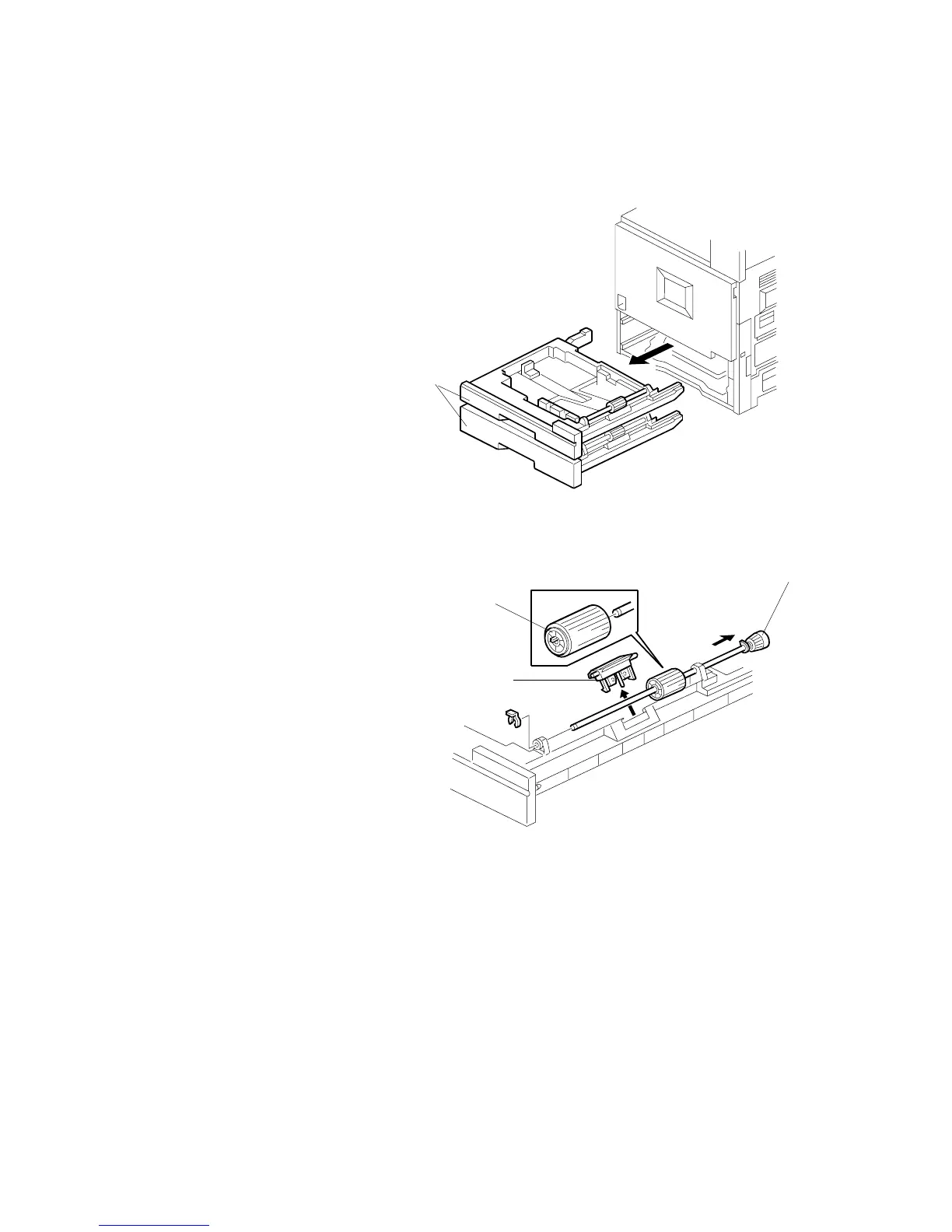

1. Paper trays [A]
2. Slide out the shaft [B] (# x 1).
3. Feed roller [C] (1 hook)
4. Friction pad [D] (2 hooks)
