26 July 2002 FUSING/PAPER EXIT
3-35
Replacement
Adjustment

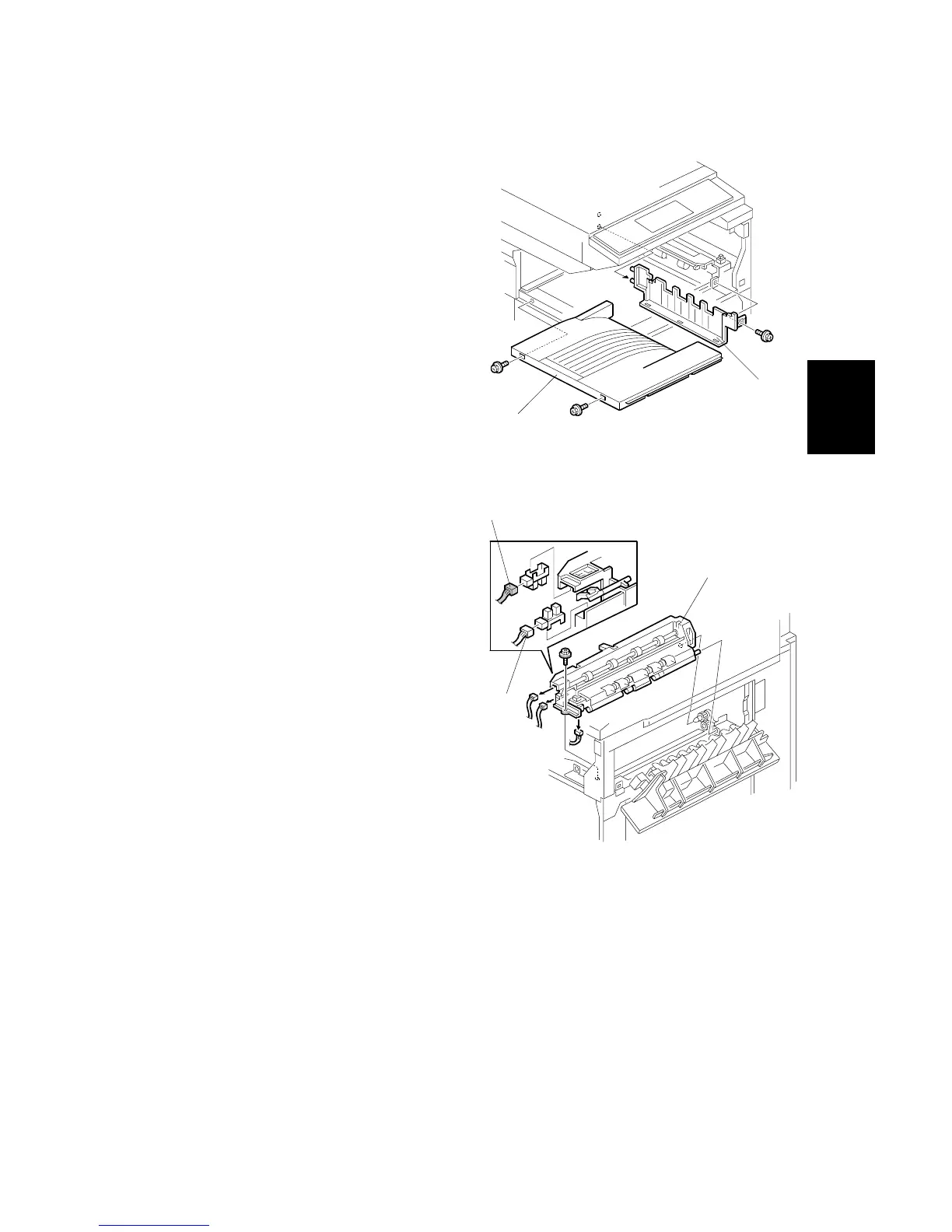

6. Paper exit tray [A] (! x 2)
7. Paper exit lower cover [B] (! x 1)
8. Paper exit unit [C] (" x 3, ! x 1)
NOTE: Remove 2 connectors
before removing the unit. To
remove the last connector,
remove the unit and turn it
over. The connector is on
the bottom.
9. Paper exit sensor [D]
10. Paper overflow sensor [E]
B051R507.WMF
B051R508.WMF
[E]
[C]
[D]
[B]
[A]
