Ricoh U-C1 B051 - Drive Power Path

OVERVIEW 26 July 2002
6-4

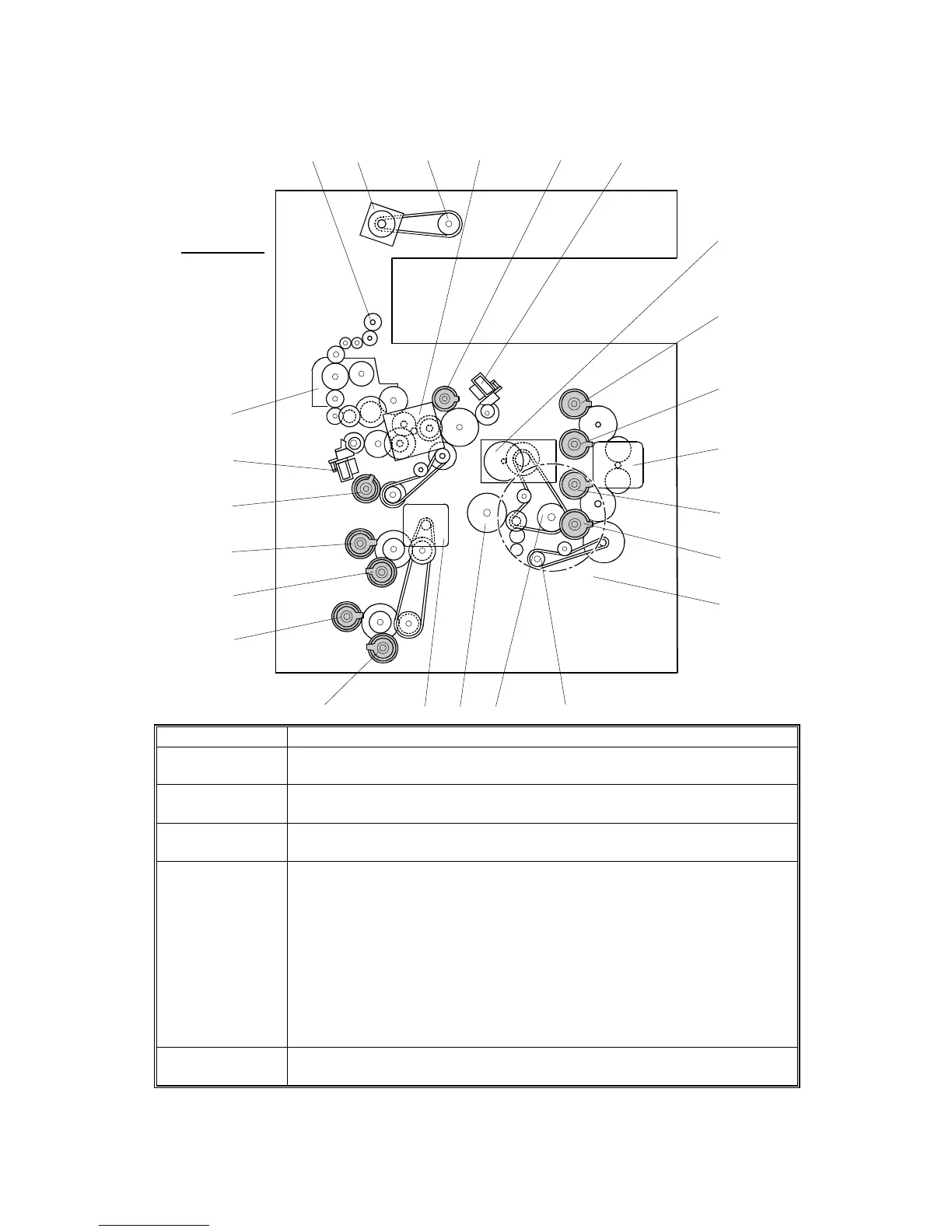

Drive Power Path
Motor (Type) Drives ...
Scanner [B]
(Stepper)
• Scanner motor gear [C]
Development [I]
(DC brushless)
• Development clutches [H
K,Y,C,M
] → Development units
• OPC belt cleaning clutch → OPC belt cleaning unit
Main [G]
(DC brushless)
• OPC belt [L] with the flywheel [J]
• Image transfer belt [M]
Fusing Unit [D]
(DC brushless)
• Fusing unit [S]
• Paper exit unit [A]
• Image transfer belt cleaning clutch [E] → Image transfer belt cleaning
unit
• Registration clutch [Q] → Registration roller
• Paper transfer roller
• Belt cleaning contact solenoid [F] → Image transfer belt cleaning unit
contact mechanism
• Paper transfer solenoid [R] → Paper transfer roller contact mechanism
• Interchange unit and one-bin tray
Paper Feed [N]
(Stepper)
• Paper feed clutch [O
1,2
] → Paper pick-up roller
• Vertical transport clutch [P
1,2
]
B051D108.WMF
[A]
[B]
[C] [D]
[E]
[F]
[G]
[H
K
]
[I]
[J]
[K]
[L]
[M]
[N]
[O
2
]
[P
2
]
[Q]
[R]
[S]
[H
Y
]
[H
C
]
[H
M
]
[O
1
]
[P
1
]
REAR VIEW
