Ricoh U-C1 B051 - 6.6 IMAGE PROCESSING

26 July 2002 IMAGE PROCESSING
6-23
Detailed
Descriptions
6.6 IMAGE PROCESSING
6.6.1 OVERVIEW

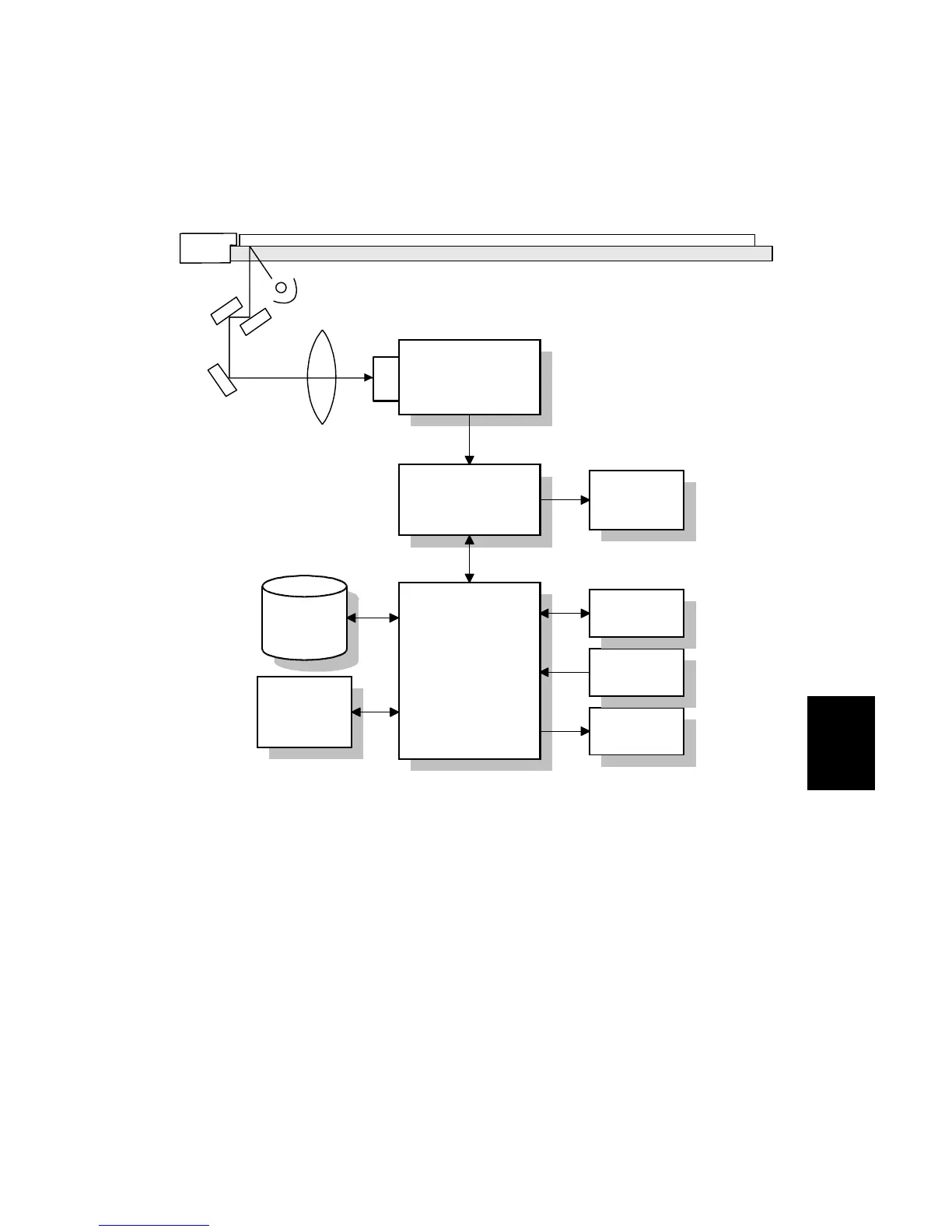

The CCD (Charge-Coupled Device) generates three analog video signals. The
SBU (Sensor Board Unit) converts the three analog signals to 10-bit digital signals.
It sends these signals to the BICU board. The BICU board processes the image,
then the image data is sent to the LD unit.
BICU
Memory
Controller
LD Board
CCD
HDD
SBU
Scanner
(Option)
Printer
(Option)
Fax
(Option)
B051D553.WMF
