Ricoh U-C1 B051 - Paper Feed Sensor 1; Paper Near-End Sensors

PAPER FEED AND TRANSPORT 26 July 2002
3-40

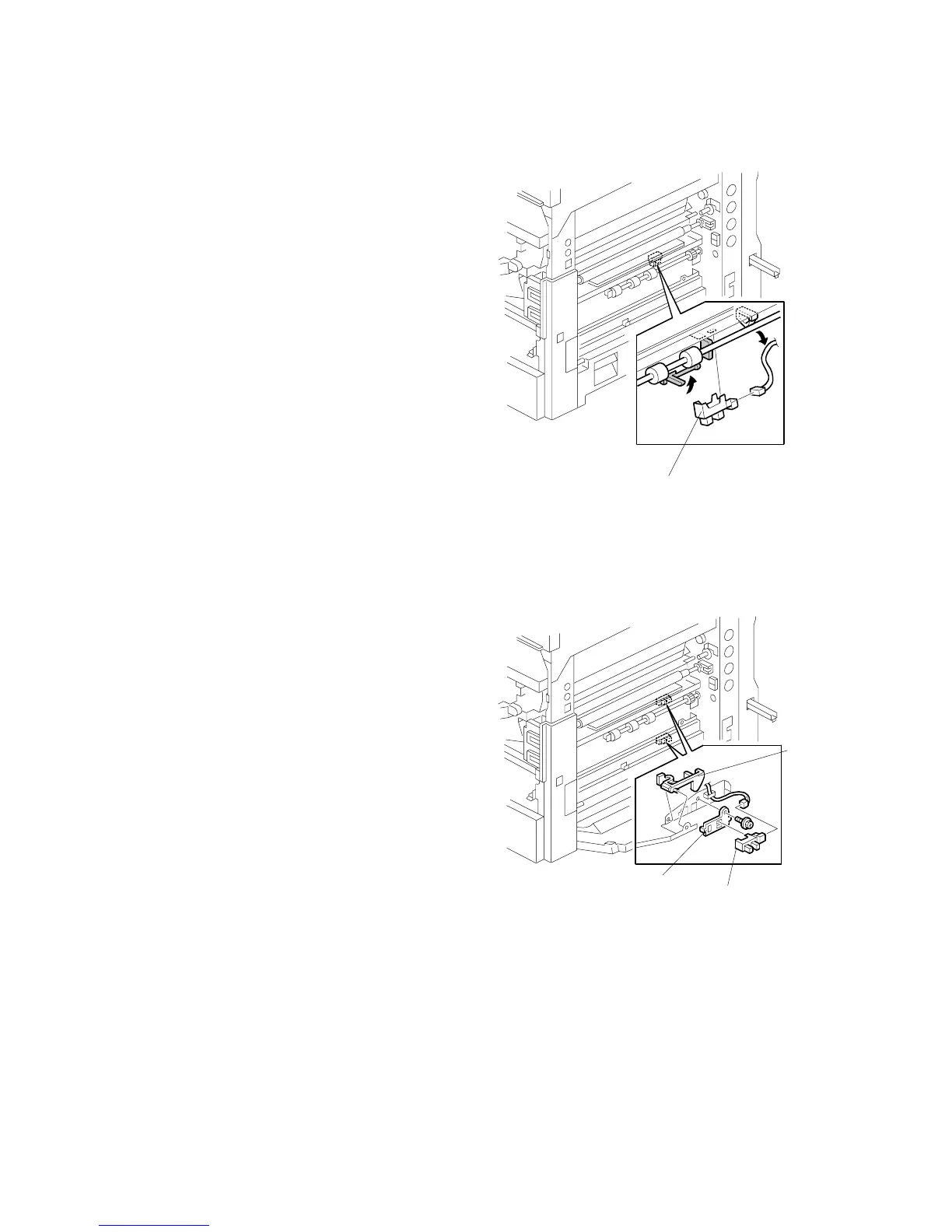

3.9.3 PAPER FEED SENSOR 1
1. Transport stay (☛ 3.9.2)
2. Paper feed sensor 1 [A] (" x 1)
NOTE: Unhook the rear two pawls
first, move the feeler, and
unhook the front pawl.
3.9.4 PAPER NEAR-END SENSORS
1. Transport stay (☛ 3.9.2)
2. Feeler [A]
3. Sensor bracket [B] (! x 1)
4. Paper near-end sensor [C] (" x 1
each)
B051R609.WMF
B051R610.WMF
[A]
[B]
[C]
[A]
