SCANNER UNIT 26 July 2002
3-2
3.3 SCANNER UNIT

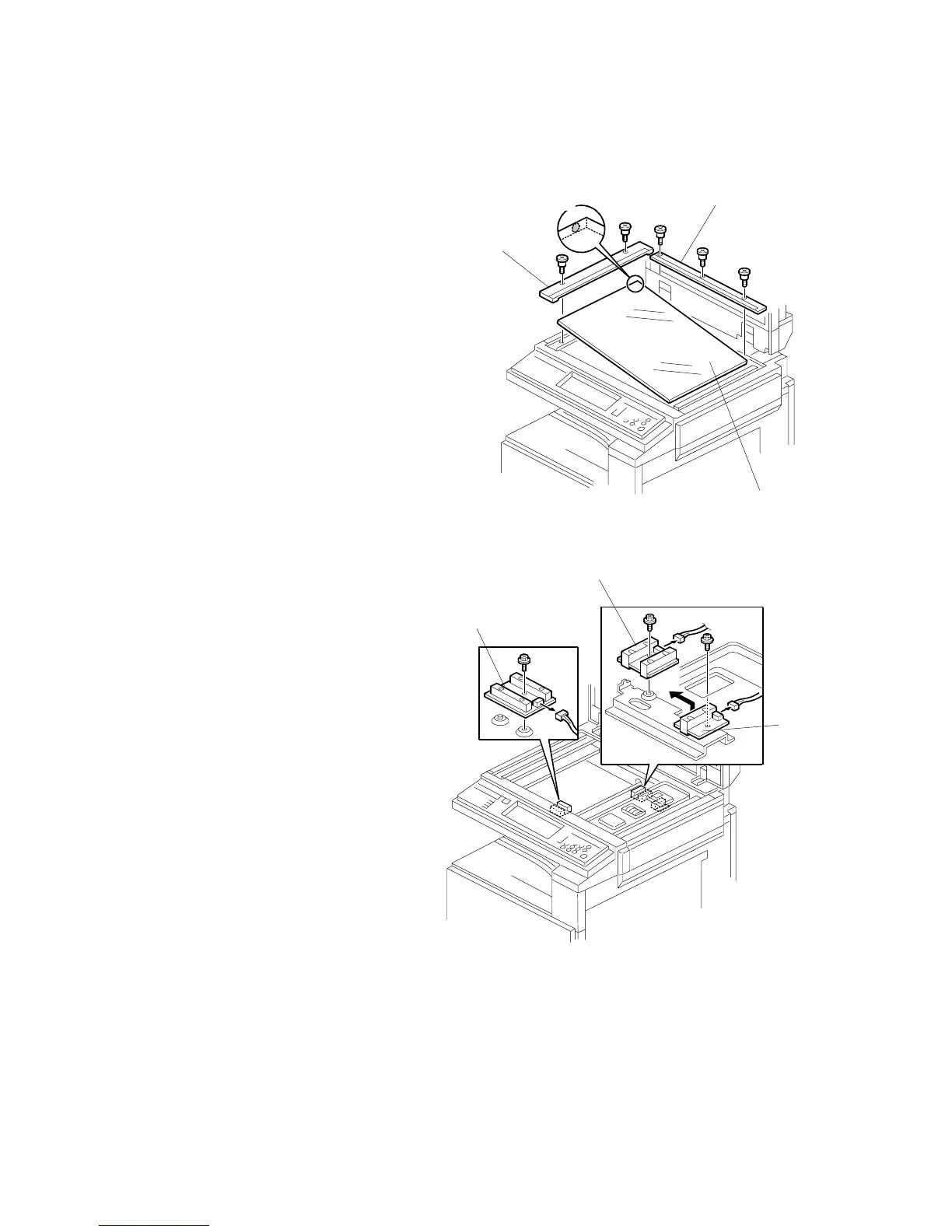

3.3.1 EXPOSURE GLASS
1. Rear scale [A] (! x 3)
2. Left scale [B] (! x 2)
NOTE: After replacing the left scale,
adjust the scanner white level
(☛ 3.14).
3. Exposure glass [C]
NOTE: When reassembling, position the
glass marker [D] at the rear-left
corner.
3.3.2 APS SENSORS
1. Exposure glass (☛ 3.3.1)
2. Original length sensor 1 [A]
(! x 1, " x 1)
3. Original length sensor 2 [B]
(! x 1, " x 1)
4. Original width sensor [C]
(! x 1, " x1)
