26 July 2002 INTERCHANGE UNIT (B481)
1-25
Installation

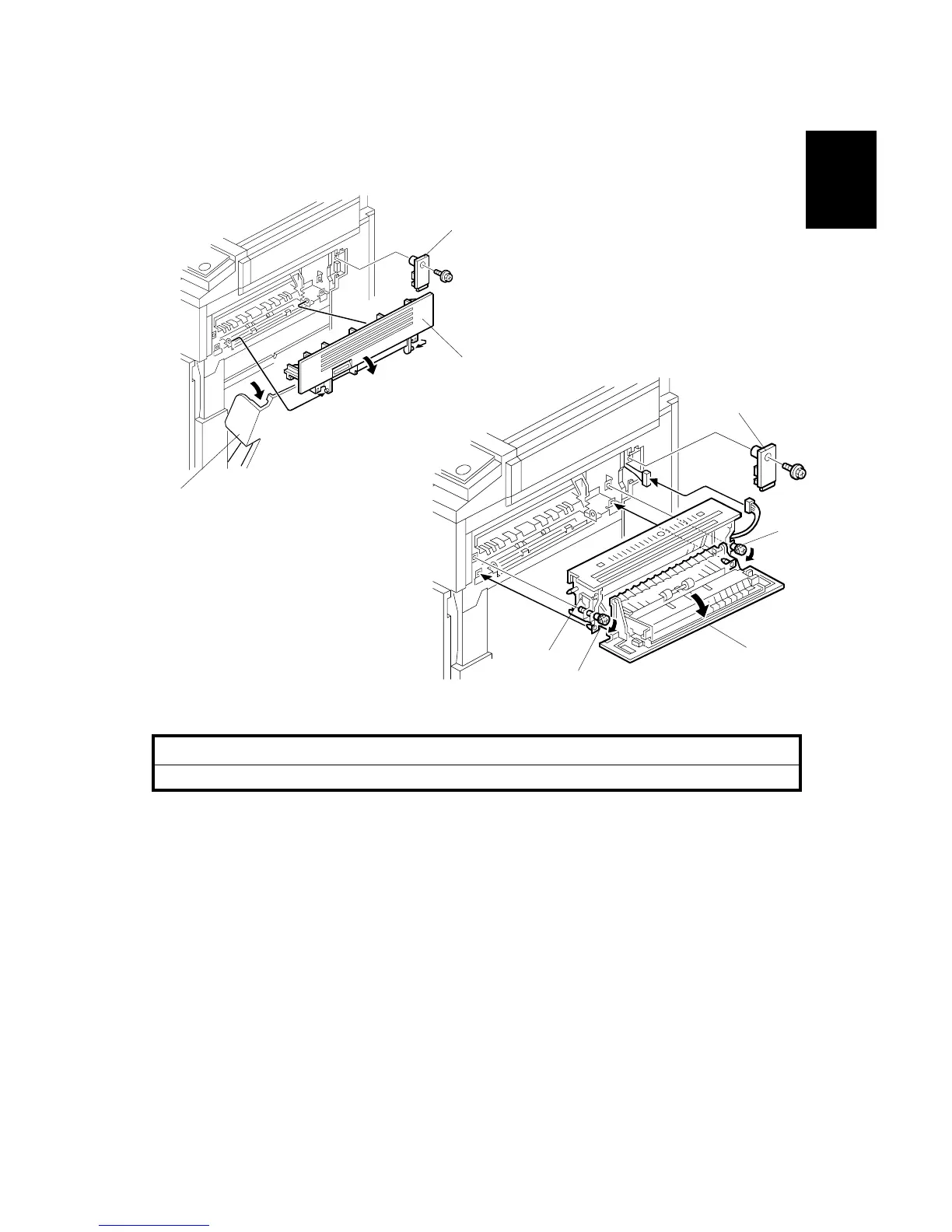

1.6.2 INSTALLATION PROCEDURE
!CAUTION
Unplug the copier power cord before starting the following procedure.
1. Remove all tapes.
2. Open the right cover [A] of the copier.
3. Open cover [B] and remove it.
NOTE: Pull down in the direction of the arrow. Do not pull directly outwards.
4. Remove the connector cover [C] (! x 1)
5. Open the cover [D] of the interchange unit.
6. Install the interchange unit [E] (" x 1).
NOTE: Take care not to pinch the harness at the front side (near [E] in the
drawing). This harness is not used in this procedure, but is used when
installing another option.
7. Secure the interchange unit with the knob screws [F].
8. Reinstall the connector cover [G] which was removed in step 4.
B481I102.WMF
B481I103.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[F]
[G]
To Next Page
