6.7.4 OPC BELT CLEANING UNIT
[A]: Lubricant bar
[B]: Cleaning brush
[C]: Feeler link (on the frame)
[D]: Waste toner bottle full sensor
(on the frame)
[E]: Waste toner feeler
[F]: Waste toner bottle switch
(on the frame)
[G]: Toner collection auger 1
[H]: Toner collection auger 2
[I]: Waste toner bottle
[J]: Cleaning blade
[K]: OPC belt
Bottle Detection
The waste toner bottle switch [F] is on the frame, behind the OPC belt cleaning unit.
When the unit is installed, it pushes the switch, which indicates the bottle is in place.
Waste Toner Collection
The cleaning brush [B] and the cleaning blade [J] removes the toner remaining on
the OPC belt [K] surface. (☛ ! Photocopying Processes – Cleaning – Counter
Blade + Brush)
Toner collection auger 1 [G] moves this toner to the front side, where it is collected
in the waste toner bottle [I].
Toner collection auger 2 [H] levels the toner in the bottle.
The waste toner feeler [E] at the rear of the bottle is gradually lifted as the toner
level in the bottle rises. When the feeler pushes the feeler link [C], the waste toner
full sensor [D] is activated and the machine detects that the bottle is full.
When the bottle becomes full, a message appears on the operation panel. The
machine can make 100 more prints, then further printing is disabled.
The bottle has a cap on the waste toner outlet. Empty the bottle when you visit the
customer.

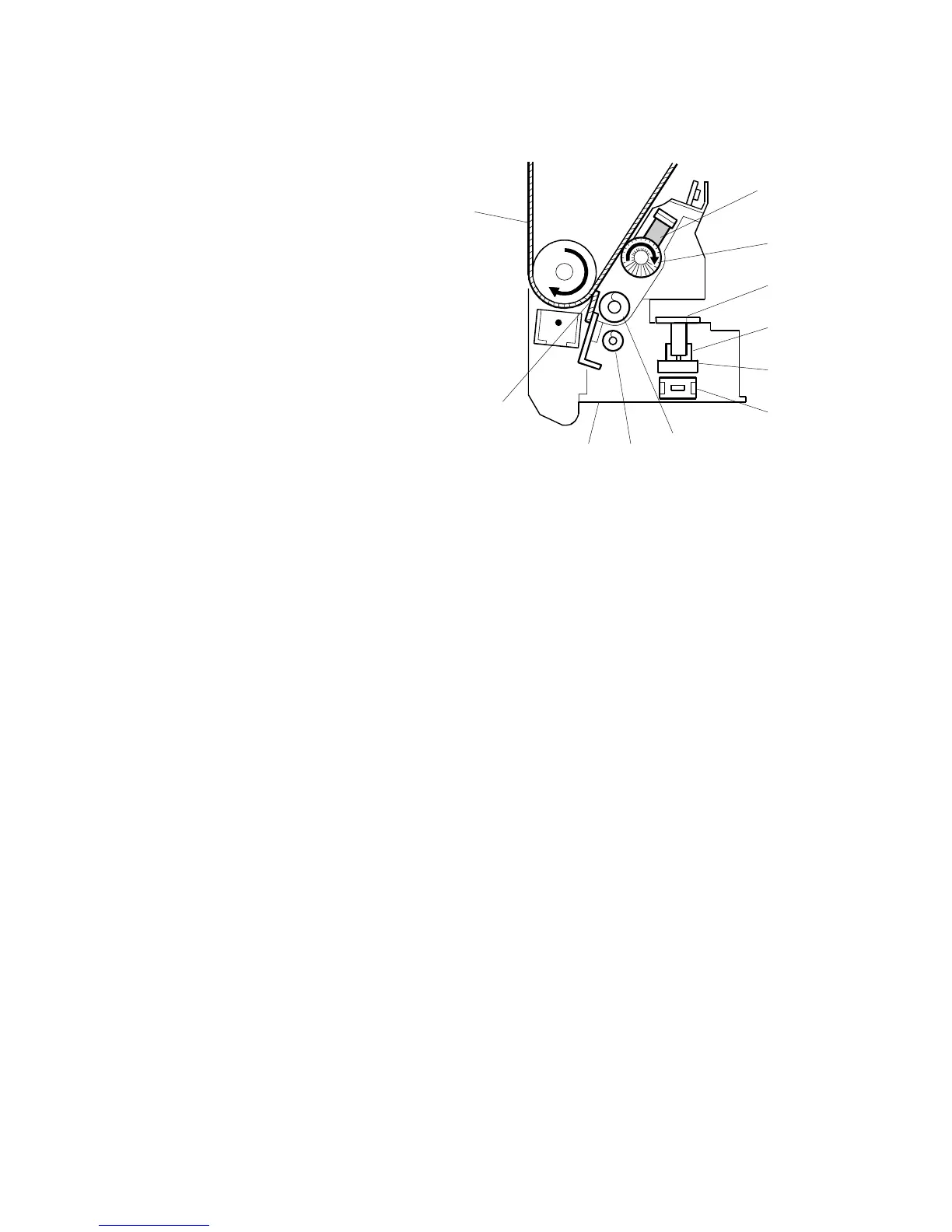

B051D313.WMF
