3.8.5 OILING ROLLER AND OIL SUPPLY ROLLER
1. Oil supply unit (☛ 3.8.2)
2. Upper cover (☛ 3.8.6)
3. Oil supply roller [A] (Spring x 2, Bushing x 2)
4. Oiling roller [B] (Spring x 2, Bushing x 2)
NOTE: The bushings on the oiling roller [C] are different from those on the oil
supply roller [D].

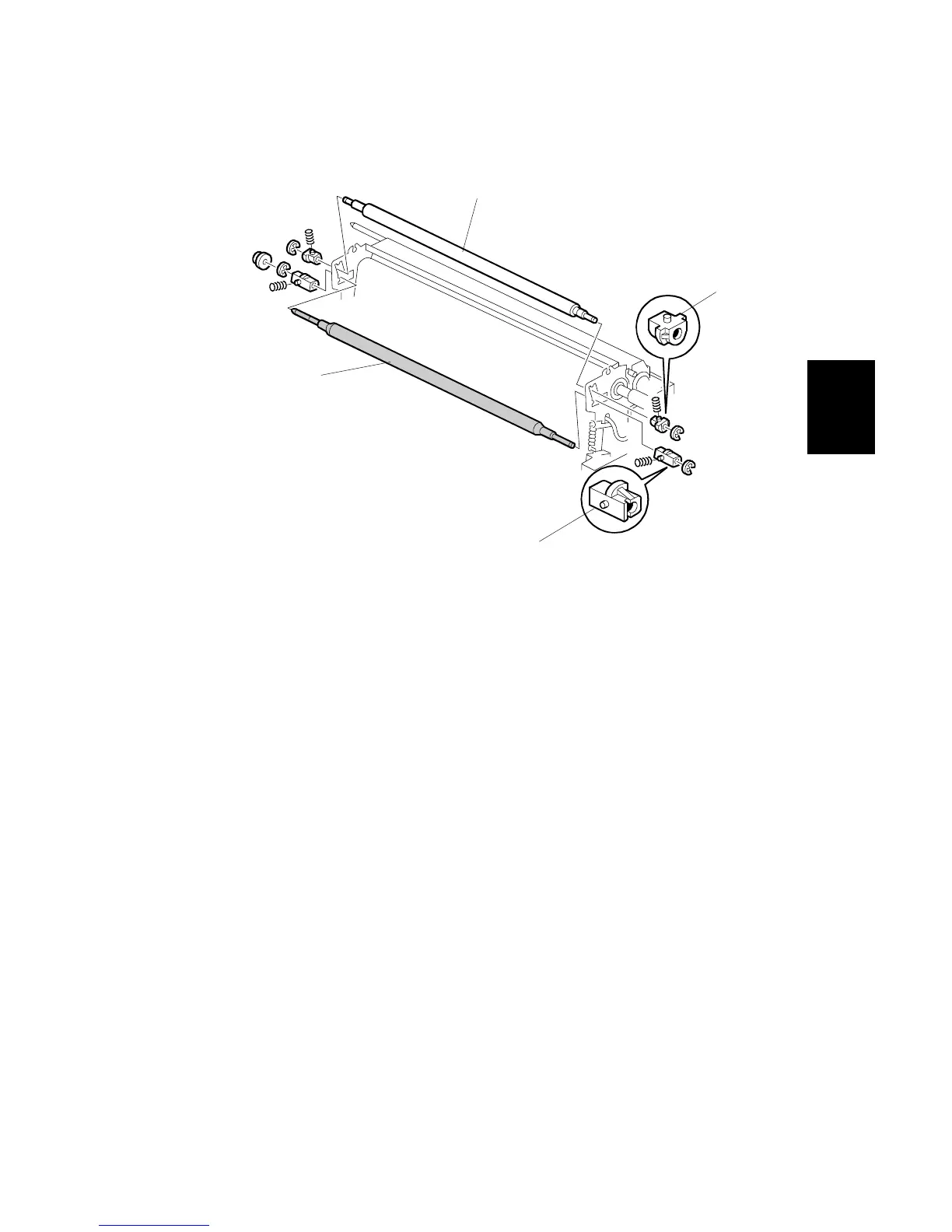

B051R560.WMF
[A]
[B]
[C]
[D]
