TRAY HEATER (OPTIONAL PAPER TRAY UNIT) 26 July 2002
1-56

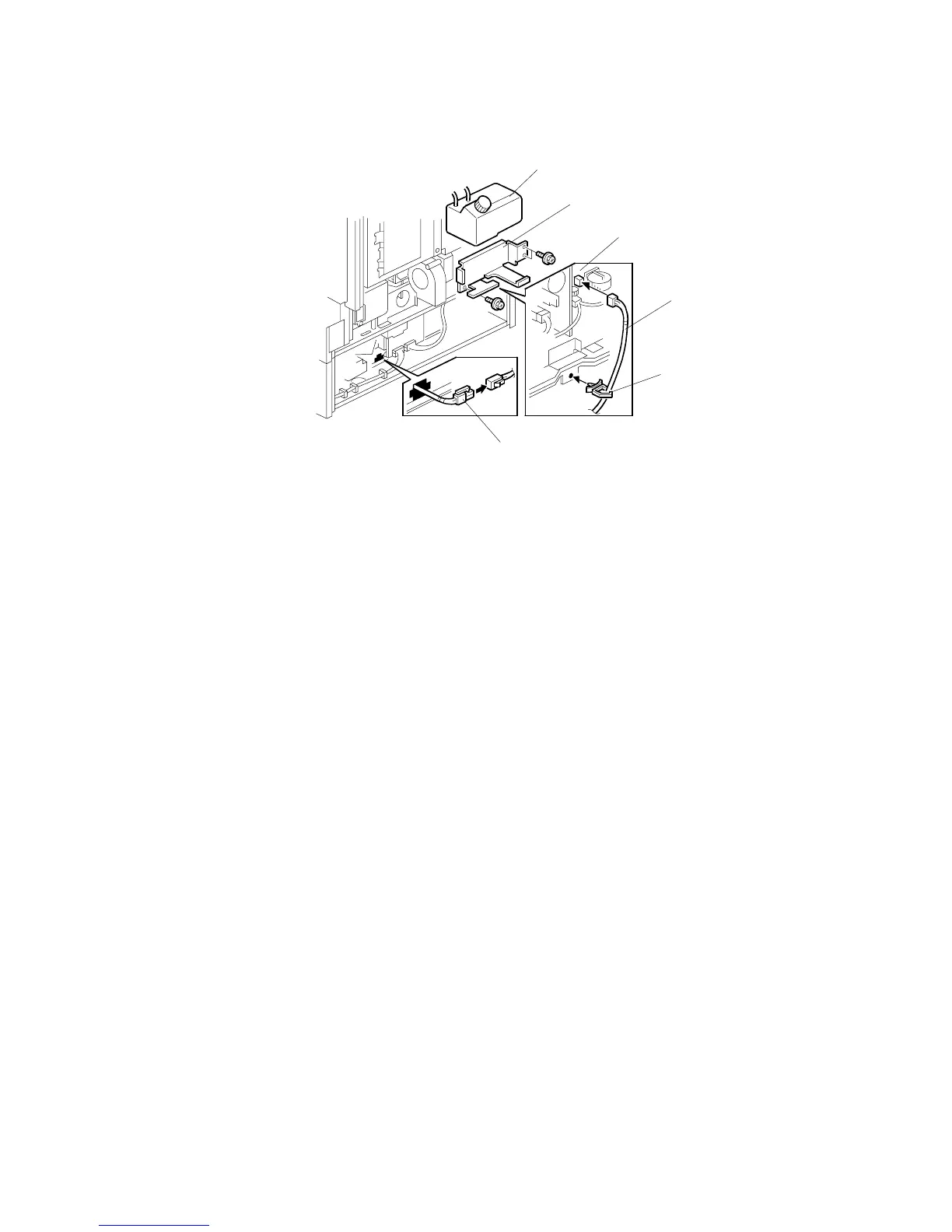

7. Remove the oil bottle [A] and the oil bottle bracket [B] (! x 3).
8. Install the clamp [C].
9. Connect the cable [D] to the heater cable [E] and the PSU [F]. Then clamp the
cable.
10. Reinstall the rear covers.
B456I202.WMF
[A]
[B]
[C]
[D]
[E]
[F]
