TRAY HEATER (OPTIONAL LCT) 26 July 2002
1-58

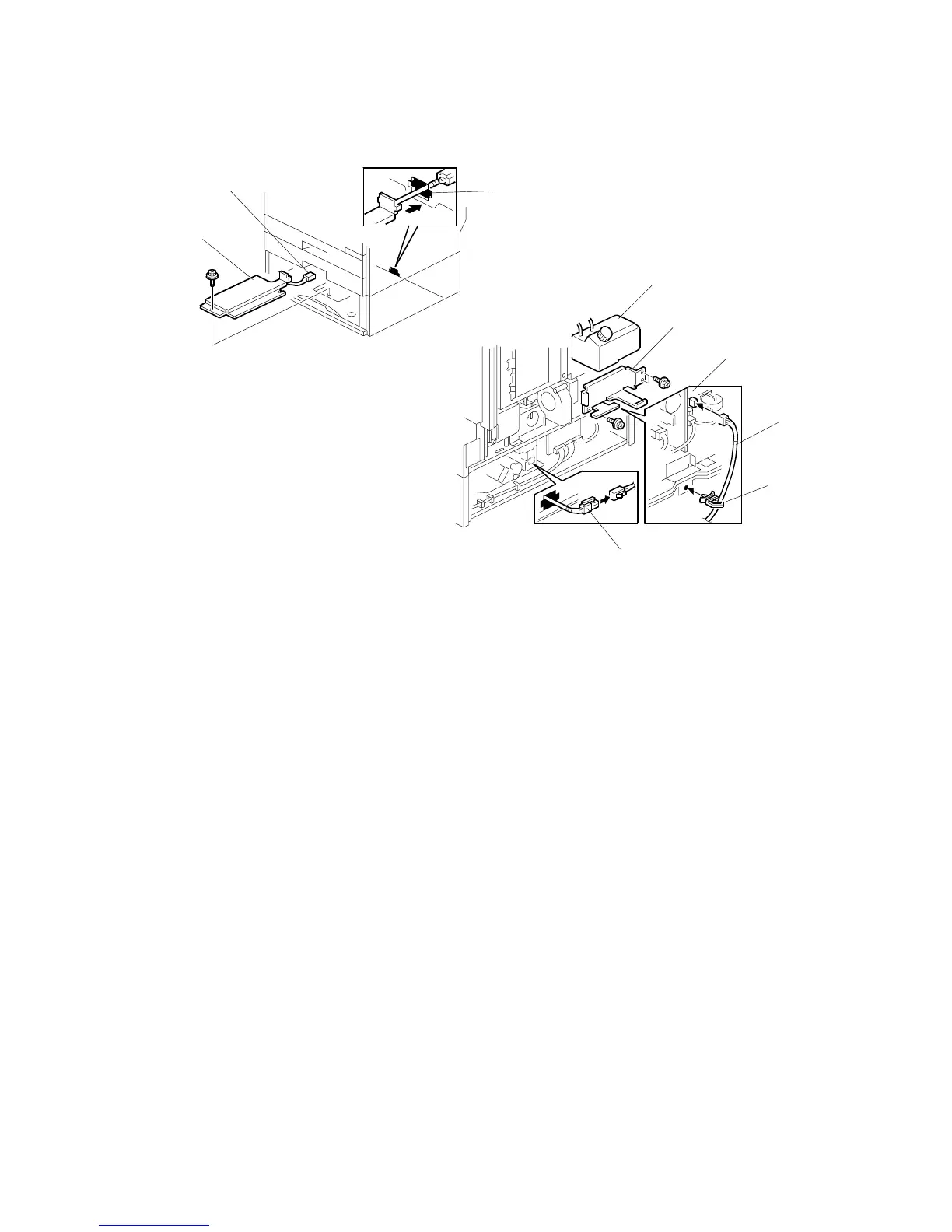

6. Pass the connector [A] through the opening [B].
7. Install the tray heater [C] (! x 1).
8. Remove the oil bottle [D] and the oil bottle bracket [E] (! x 3).
9. Install the clamp [F].
10. Connect the cable [G] to the heater cable [H] and the PSU [I]. Then clamp the
cable.
11. Reinstall the rear covers.
