26 July 2002 COPIER (B051/B052)
1-7
Installation

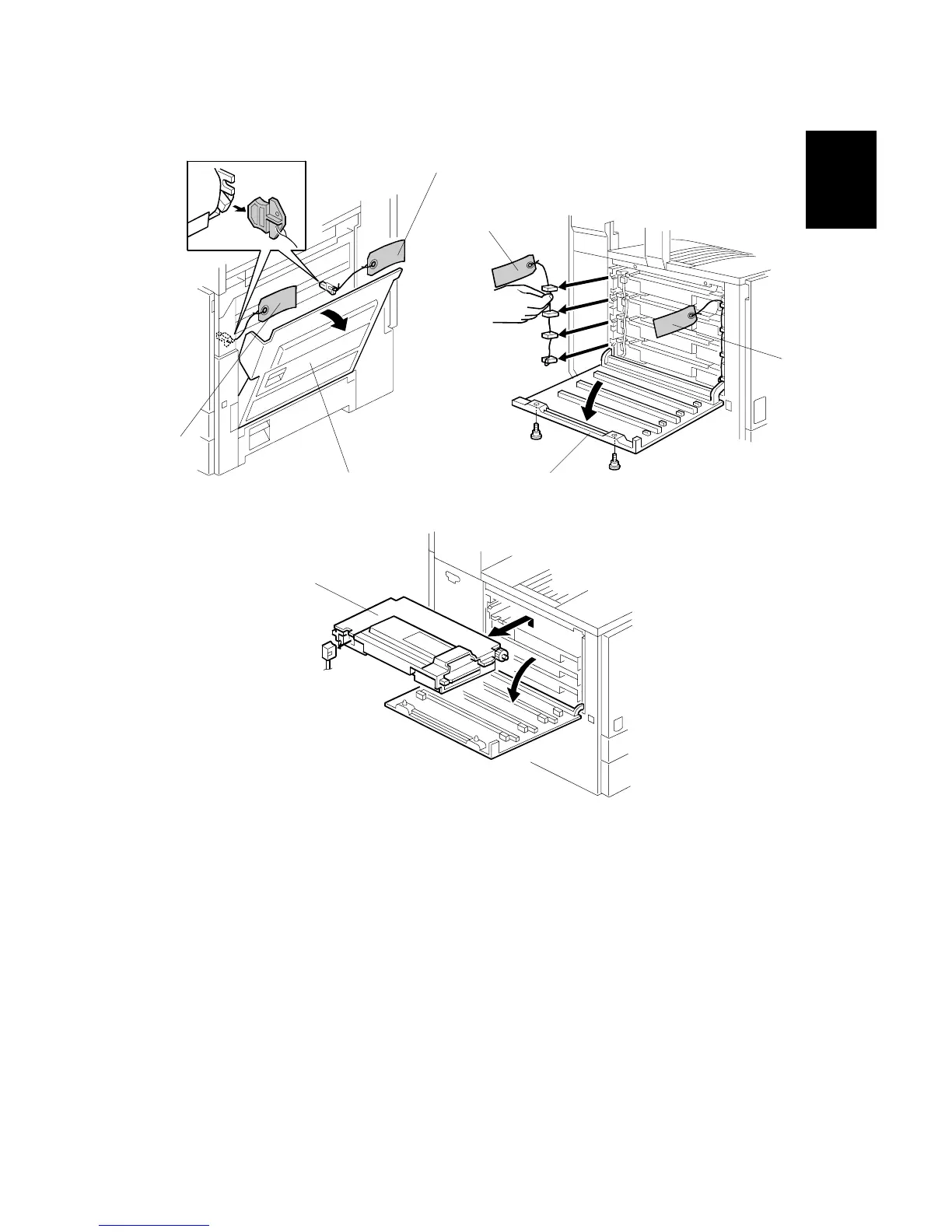

3. Open the right cover [A], and remove the red tags [B].
4. Open the left cover [C] (! x 2), and remove the red tags [D].
5. Pull out all development units [E] (" x 1 each).
B051I134.WMF
B051I124.WMF
B051I110.WMF
[C]
[D]
[D]
[A]
[B]
[B]
[E]
